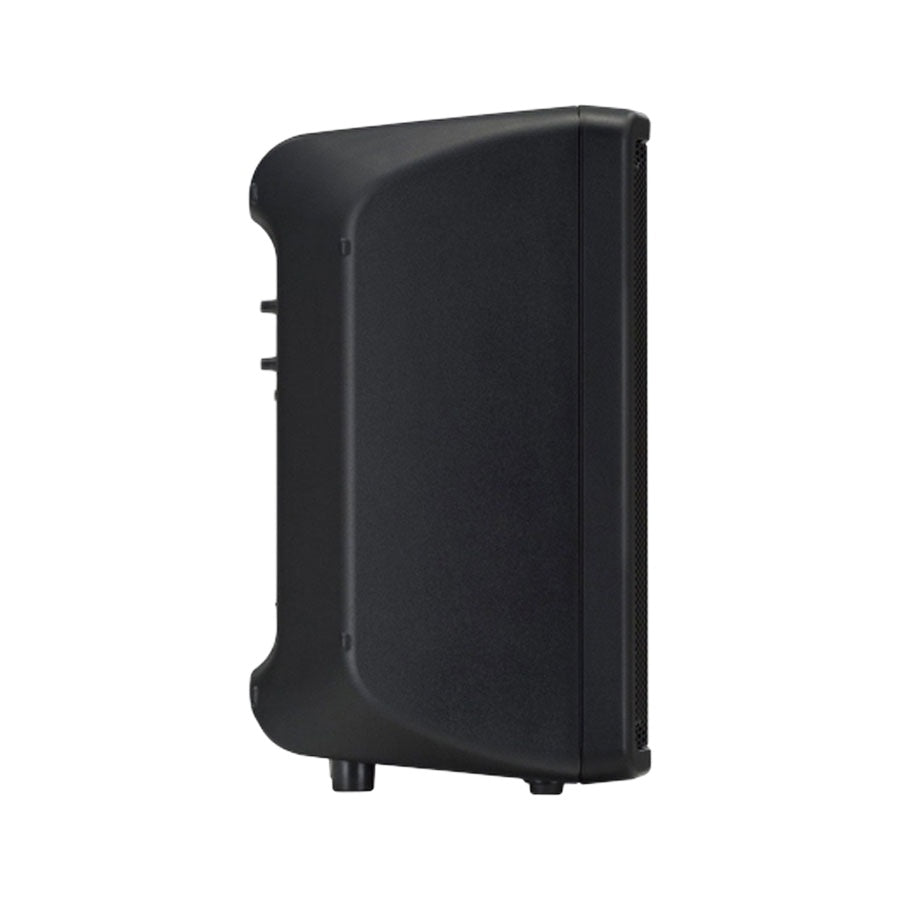

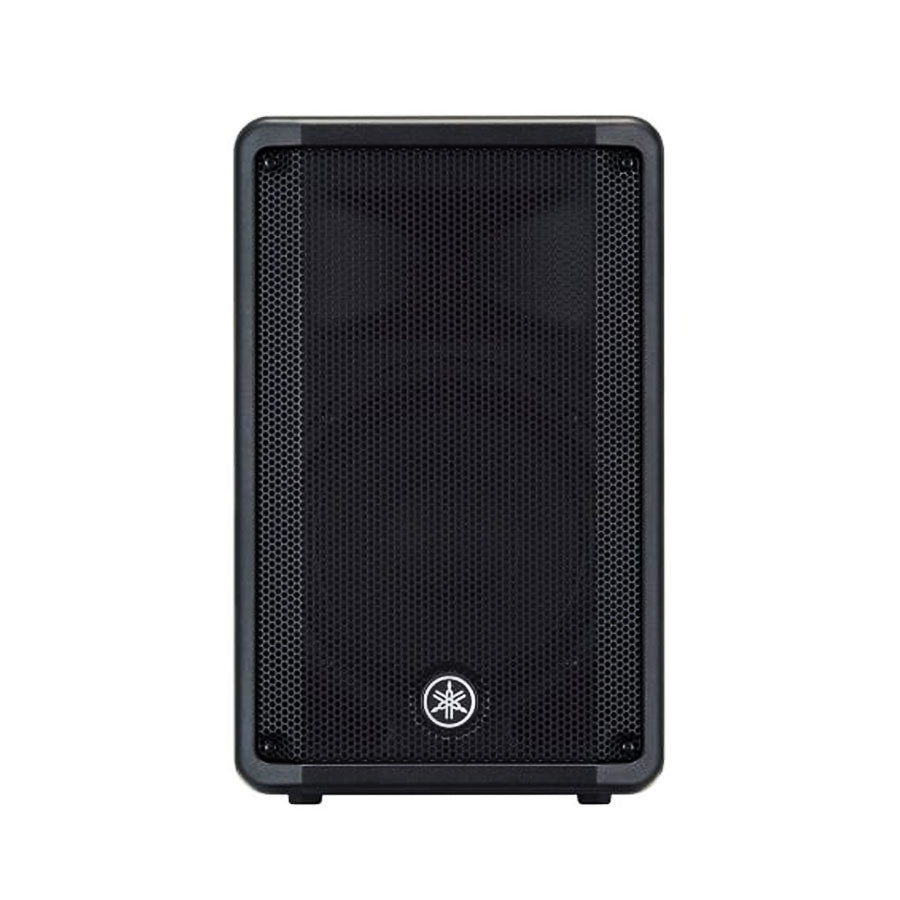

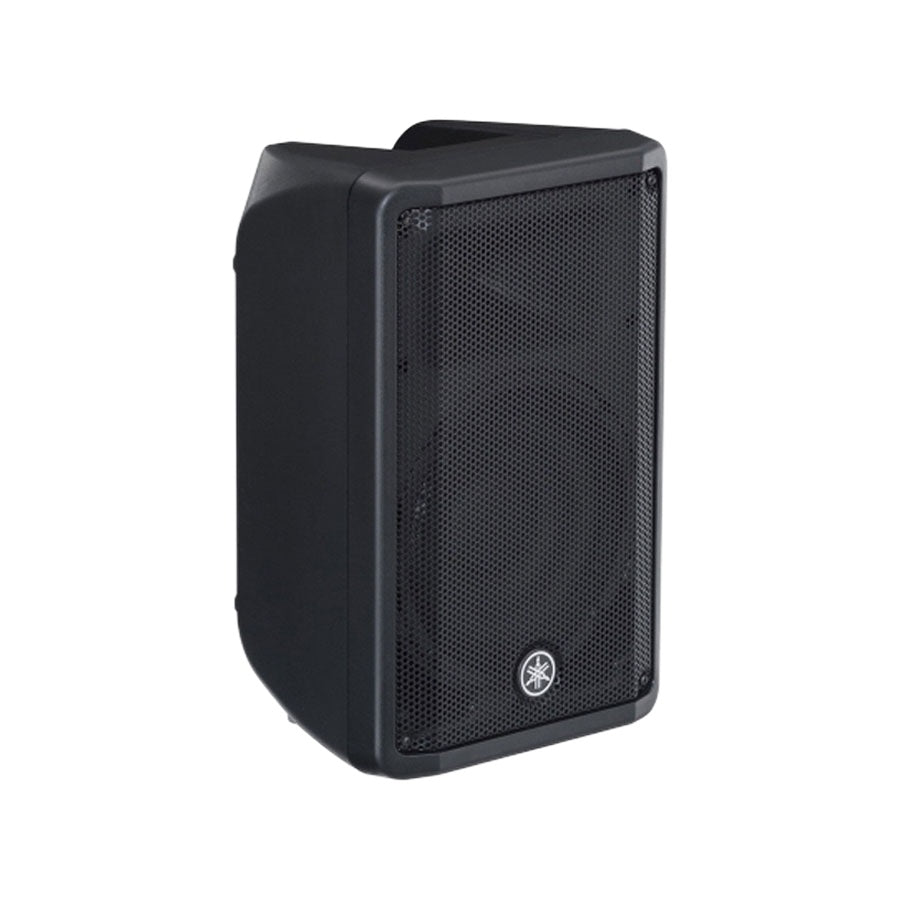

Yamaha DBR10 10-Inch 2-way Powered Loudspeaker

Yamaha DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Key Features:

• Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 55Hz – 20kHz
• Nominal coverage: H: 90°, V: 60°
• Components: LF: Diameter:10" cone, Voice Coil:2", Magnet:Ferrite, HF: Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
• Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
• Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
• Maximum output level (1m; on axis): 129dB SPL
• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Heat dissipation: Fan cooling, 4 speeds
• Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
• Power consumption: 60W(1/8 Power Consumption), 18W(Idle)
• Cabinet material: Plastic
• Finish: Black
