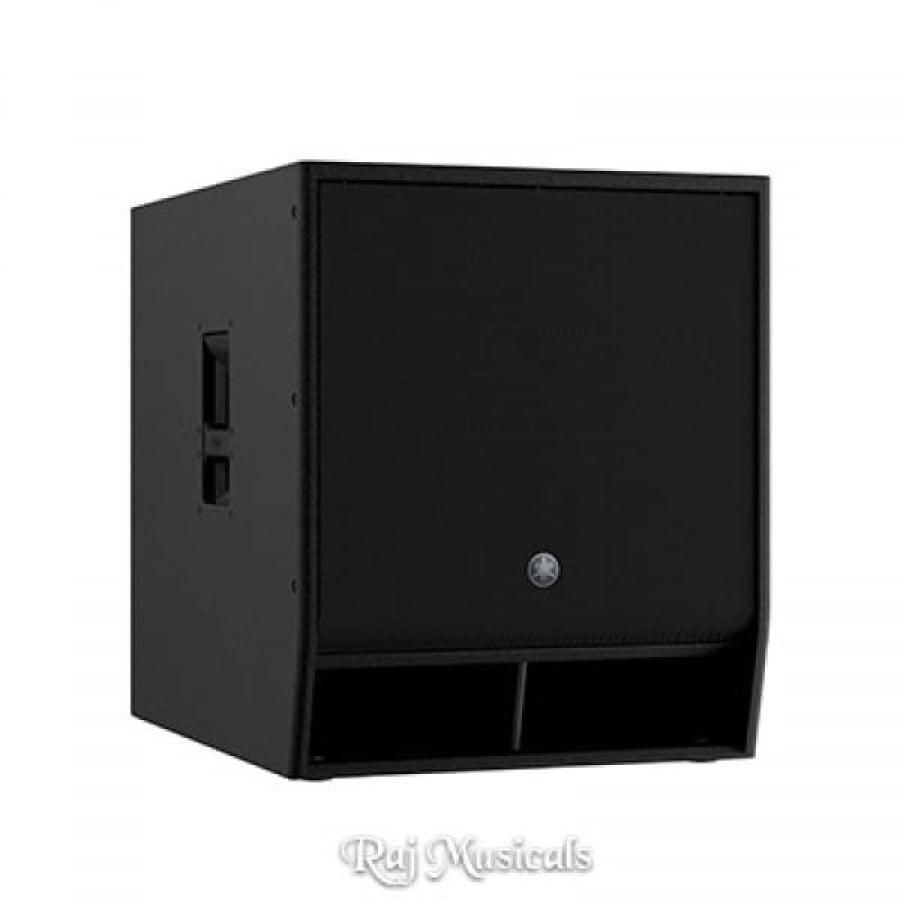

Yamaha CXS18XLF 1000W 18-inch Subwoofer

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.

Key Features:

• 18” subwoofer with 4” Voice Coil
• High power 1000W (PGM) input
• Cardioid mode capable with processors or DSP onboard power amps
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• SpeakON NL4MP x 3 (Parallel x2, Output x1)
• Dual-pole socket
• Speaker type: Subwoofer, Bass-reflex
• Frequency range (-10dB): Passive: 32 Hz - 3kHz, Normal (*1): 32 Hz - 150 Hz, Extend (*1): 29 Hz - 150 Hz
• Components LF: 18" Cone, 4" Voice Coil, Ferrite magnet
• Power rating NOISE: 500 W (EIA 426-A)
• Power ratingPGM: 1000 W (EIA 426-A)
• Power rating PEAK: 2000 W (EIA 426-A)
• Sensitivity (1W; 1m on axis): 100dB *2
• Peak (Calculated): 133 dB *2
• I/O connectors: SpeakON NL4MP x 3 (Parallel x2, Output x1)
