- SPECIFICATIONS
- Keyboard
- 37 Keys
- Sound Generator
- GAIA-2 sound generator
Pre-installed Model Expansion SH-101
Other Model Expansions (optional- via Roland Cloud) - Maximum Polyphony
- 22 voices (3 x oscillators per voice)
* The maximum polyphony varies depending on sound settings or the selected Model Expansion. - Tones
- Preset tone: 256
User tone: 512 - Oscillators
- OSC 1 (Wavetable): 63 waveforms
Modulation types: Wave position, Phase modulation (P-MOD), Shaping modulation (S-MOD)
OSC 2/3 (Classic waveforms): Sine, Triangle, Saw, Square, Super Saw, and 5 noise waves
Modulation types: Shape, Ring modulation, Oscillator sync, Cross modulation 1, Cross modulation 2
Envelope: Attack, Decay
Envelope destination: Pitch, Oscillator 1 position, Oscillator 2 shape, Oscillator 3 shape, P-MOD X, P-MOD Y, S-MOD Depth, S-MOD Drive - Filter
- Filter type: LPF, BPF, HPF
Filter slope: -12dB/Oct, -18dB/Oct, -24dB/Oct
Envelope: Attack, Decay, Sustain, Release
Filter Drive - Amp
- Envelope: Attack, Decay, Sustain, Release
- LFO
- 2 LFOs, 5 waveforms and 1 programmable step LFO wave
LFO assignment: Up to 4 parameters from panel knobs and sliders (except for click dials) in each LFO - Effects
- Multi-Effects: 53 types
Reverb/Delay: 7 types
Chorus: 3 types (9 modes in total)
* The sound path order of the above effects can be changed.
Master EQ
Master Compressor - Other Functions
- Portamento
Unison
Chord memory - Step sequencer
- 64 steps : Each step can record 8 notes and 4 controls
Recording modes: Real-time/Step/TR-REC
Probability
Random pattern generator - Arpeggiator
- Mode: Up, Down, Up&Down, Random, Note Order
Scale: 16 variations - Motional Pad
- Two dimensional edit to P-Mod X/Y or S-Mod Depth/Drive
Two dimensional assignable control to parameters of panel knobs and sliders (except for click dials)
Motion recording and playback function
Menu interface with a drag pointer - Other Controllers
- Pitch Bend wheel
Modulation wheel - Display
- OLED 128 x 64 dots
- Connectors
- HEADPHONES jacks: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PEDAL jack: Stereo 1/4-inch phone type (available for a hold pedal or a control pedal)
MIDI connectors (IN, OUT)
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
USB MEMORY/EXT DEVICE port: Type-A (Storage, MIDI) - Power Supply
- AC adaptor (DC IN port)
USB bus power supply (USB Type-C(R) port)
* External power supply from a USB Type-A port isn't available. - Current Draw
- 600 mA (AC adaptor)
1,800 mA (USB bus power supply) - External Memory
- USB Flash drive (commercially available)
- Accessories
- Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor (PSB-5U)
Power cord - Options (sold separately)
- Pedal Switch: DP series
Expression Pedal: EV-5
Wireless Adapter: WC-1
Keyboard Bag: CB-B37 - SIZE AND WEIGHT
- Width
- 655 mm
25-13/16 inches - Depth
- 336 mm
13-1/4 inches - Height
- 92 mm
3-5/8 inches - Weight
- 4.4 kg / 9 lbs 12 oz

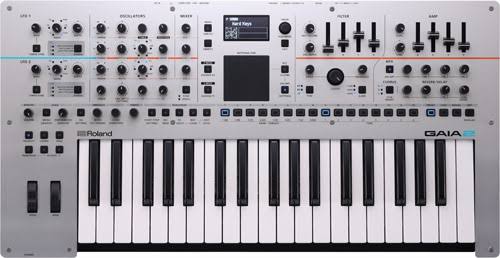

Roland GAIA-2 Virtual Analog Synthesizer
THE SHAPE OF SOUND
GAIA 2 opens the door to an infinite universe of inspired sound creation. Armed with a powerful hybrid engine that combines wavetable and virtual analog synthesis, you can quickly learn the basics before rocketing into uncharted sonic territory. The friendly panel layout logically outlines the synthesis workflow for speedy sound design, while full-size keys provide exceptional playability when you’re ready to perform. And with the sequencer and Motional Pad, it’s easy to generate complex sounds and phrases full of dynamic movement and alter them on the fly. Discover the shape of sound with GAIA 2 and bring all your musical visions to life.
Roland GAIA-2 Virtual Analog Synthesizer
Sale priceRs. 97,000.00
Regular priceRs. 112,076.00
