FANTOM amplified.
Introducing FANTOM EX, the most potent creative keyboard on the planet. The latest chapter in the FANTOM legacy supercharges Roland’s premier synth platform with next-level capabilities, offering multiple advanced sound engines, enhanced composition and performance tools, and superior playability.

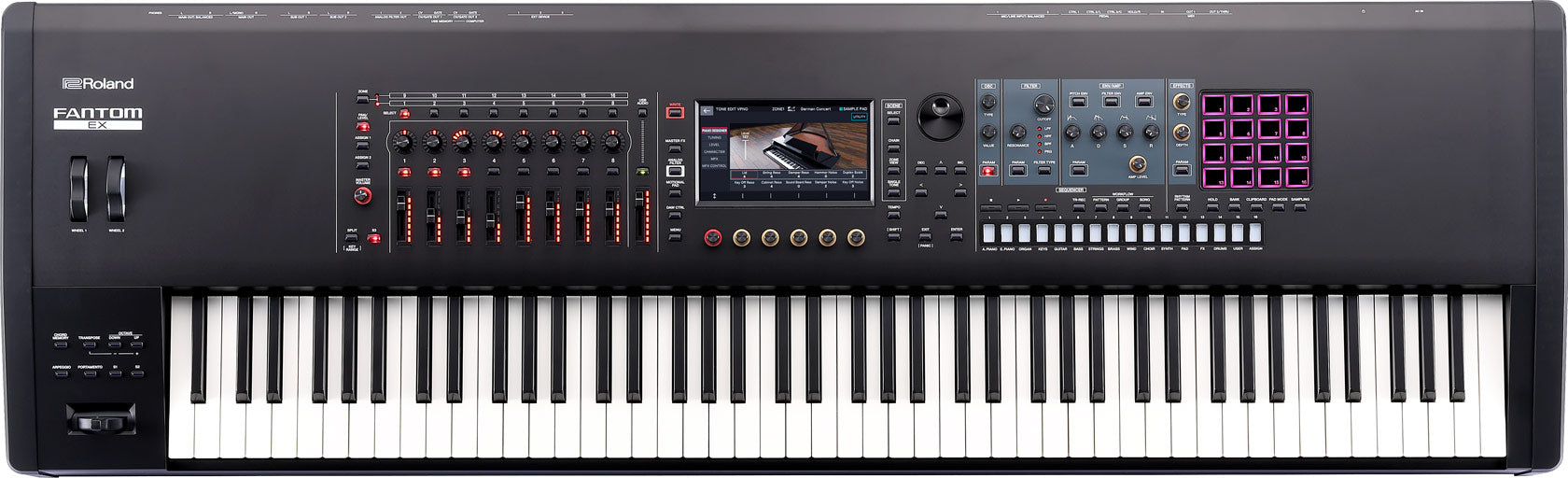

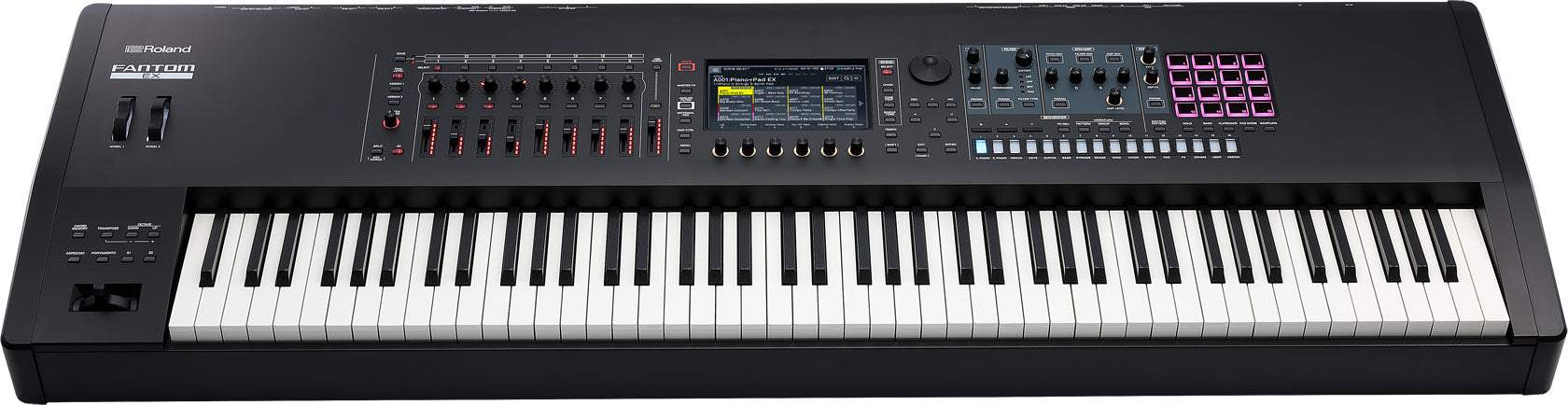

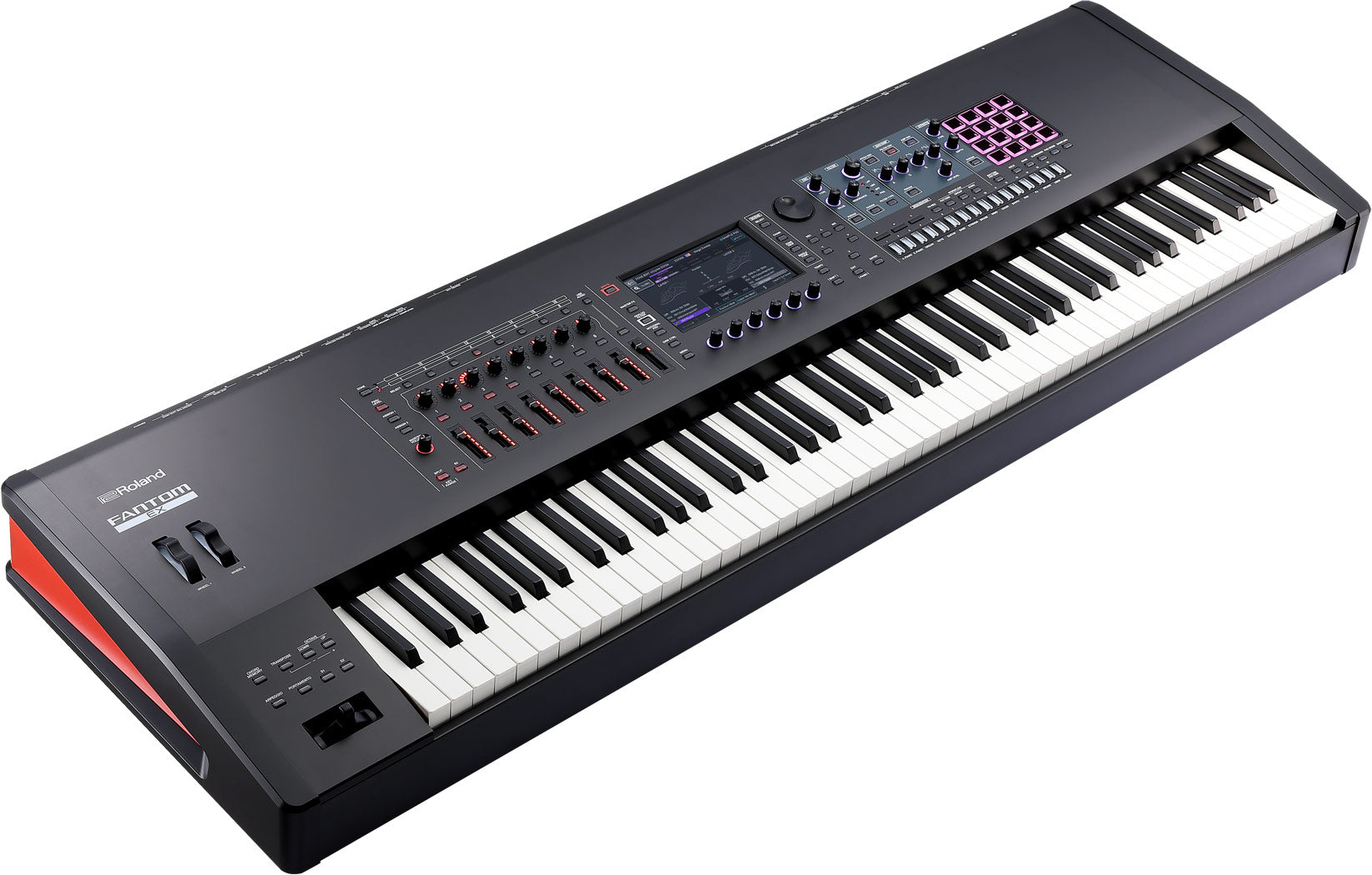

Equipped with 88 hammer-action keys, FANTOM 8 EX includes every feature from its acclaimed predecessor and so much more. Updated with our most sophisticated technologies, this robust platform brings you a complete creative ecosystem for professional sound design, sequencing, and performance.
-
MIDI Tracks16Group16Pattern8 (per each Track)Pattern Length64 measuresRecording MethodRealtime recording, Step recording, TR-RECEditing MethodPiano roll edit (Touch Edit / Automation support), MicroscopeSong1 (per Scene)File formatOriginal, SMF export/import supported
* PAD Sampler trigger data can be recorded.SAMPLER - KEYBOARD MULTISAMPLEFormat16/24-bit linear, 44.1/48 kHz, WAV/AIFFNumber of Samples8,000Number of Multisamples128Sampling TimeThe maximum is 2 minutes 44 second (1 Sample).
* A total of approximately 2 GB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.SAMPLE - PAD SAMPLERFormat16-bit linear, 44.1/48 kHz, WAV/AIFF import supportedMaximum Polyphony8Number of Samples16 Pads x 4 BanksSampling TimeThe maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB (including imported WAV files)
When you use the PAD samples as KBD Wave, then you have to manipulation it.Sampler - Internal Storgae space for filesSize2 GBOTHERRhythm PatternYesArpeggiatorYesChord MemoryYesMotional PadYesPAD ModeSample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group PlayAIRA LINKYes
* When connect to MX-1CV/Gate Control2 x CV/Gate or 3 x CV/1 x GateControllersPitch Bend/Modulation Lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
USB Audio slider
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 11 *1
4 x 4 Pad
*1: 1024 step editing support

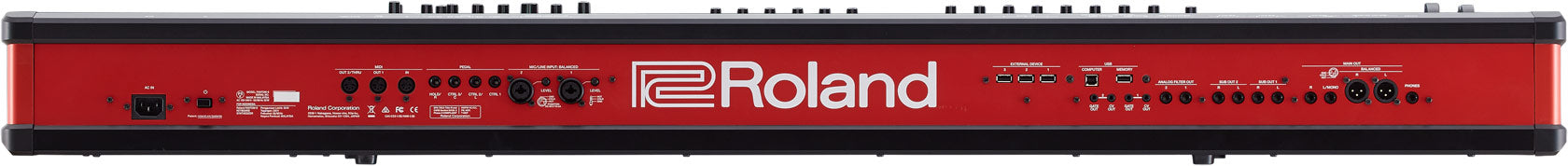

Sound Modified knob can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.DisplayGraphic Type, 7", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen, Wallpaper support)ConnectorsHeadphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch phone type)
MAIN OUT jacks (L, R) (XLR type)
SUB OUT1 jacks (L, R) (1/4-inch phone type)
SUB OUT2 jacks (L, R) (1/4-inch phone type)
ANALOG FILTER OUT jacks (1,2) (1/4-inch phone type)
Mic/Line Input jacks: (1,2) (1/4 inch phone type/XLR type)
2 x CV OUT, 2 x GATE OUT
FOOT PEDAL jacks (HOLD, CTRL1, CTRL2, CTRL3) * 1024 Step value support
MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
USB MEMORY Port(USB A)
USB COMPUTER Port (AUDIO/MIDI)(USB B)
3 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.Audio InterfaceMax 24 bit/96 KHz
Record 16 Stereo Channel
Playback 3 Stereo ChannelExternal MemoryUSB Flash drive (sold separately)Power SupplyAC 117-240 V 50/60 HzPower Consumption50 WAccessoriesOwner's manual
Power CordOptions (sold separately)Keyboard Stand: KS-G8B, KS-11Z, KS-13
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*)
* Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.SIZE AND WEIGHTWidth1,432 mm
56-7/16 inchesDepth439 mm
17-5/16 inchesHeight153 mm
6-1/16 inchesWeight27.7 kg
61 lbs 2 oz
