Unify your creative vision.
FANTOM-0 brings your creative world together, combining the sonic power and fluid workflow of the top-of-the-line FANTOM series in streamlined instruments that go everywhere your inspiration takes you.

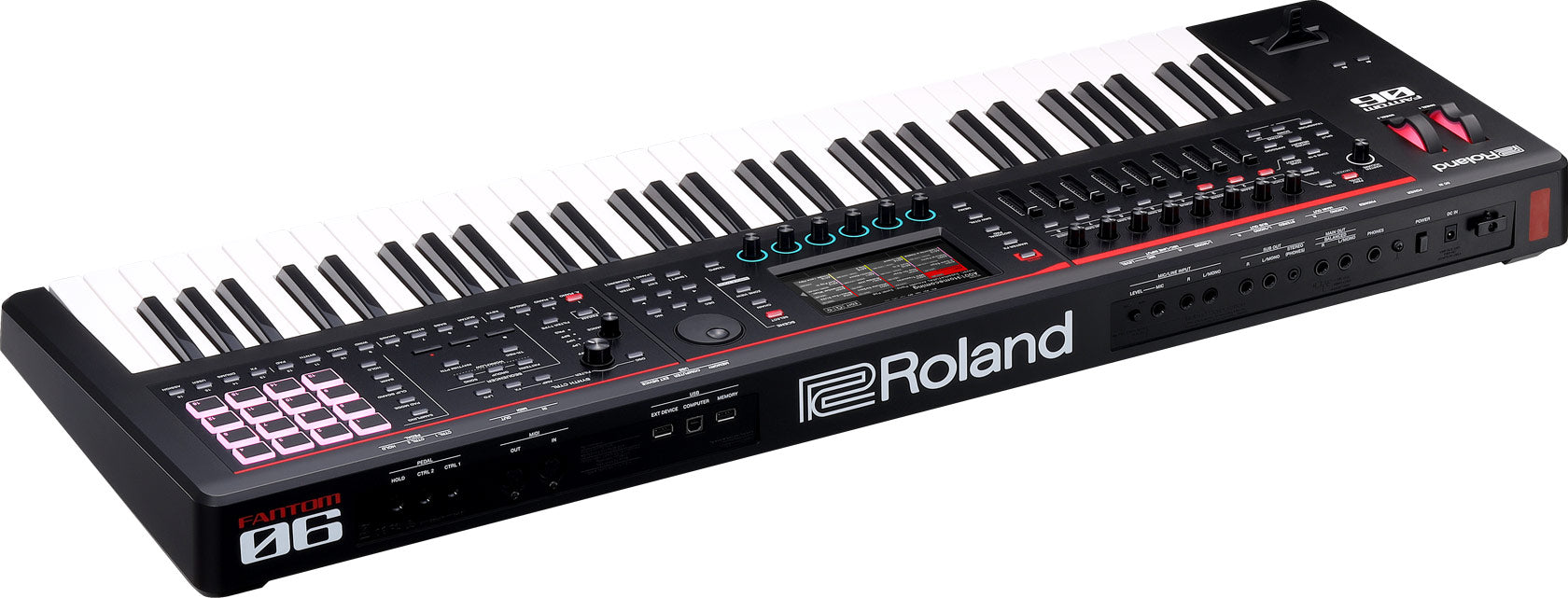

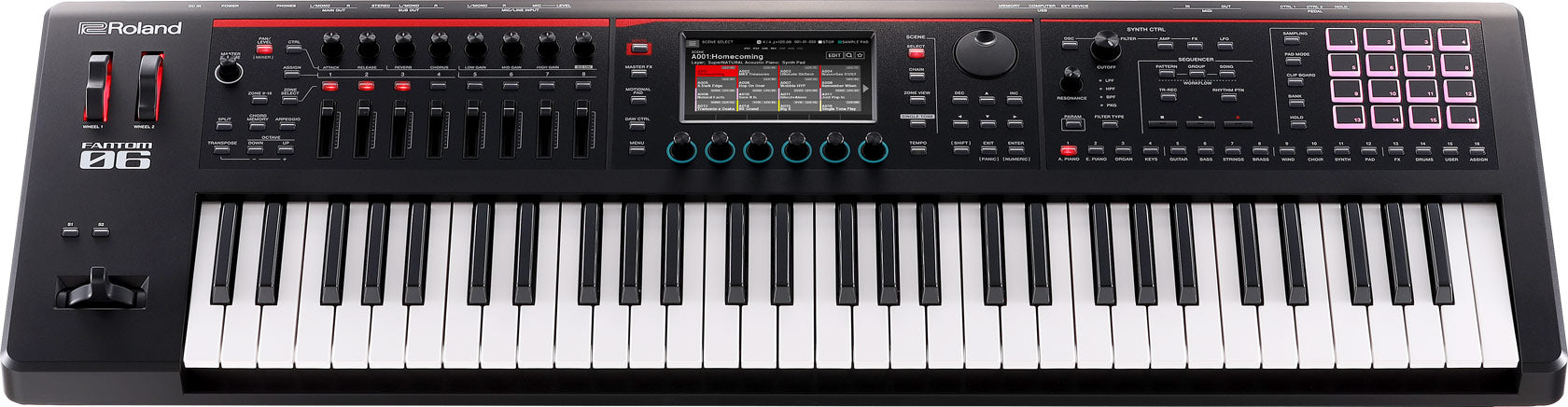

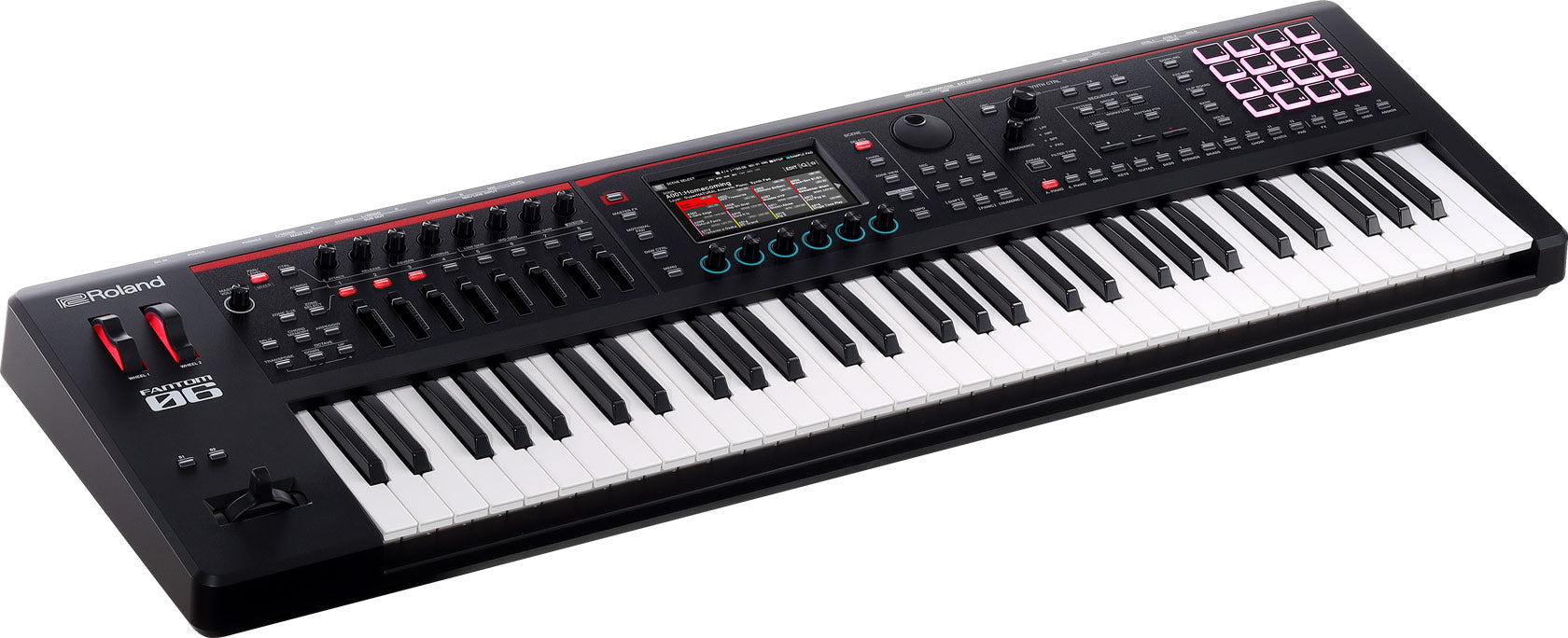

Equipped with a newly designed 61-note keyboard, FANTOM-06 has everything you need to create and perform at the highest level. Play and produce with thousands of Roland’s best sounds and unleash your musical vision with a color touchscreen, hands-on controls, and deep computer integration derived from the flagship models.
Learn more about the sounds and features of the FANTOM-0 series.
- Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
TFX: 1 system, 90 types
Input MFX: 1 system, 90 types
Chorus: 9 types
Reverb: 7 types
Master Compressor
Input Reverb: 7 types
Input EQ: 1 systemVocoderBand: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20Scene ChainChain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 36 (0-9, A-Z, a-z) per 1 Chain SetPATTERN SEQUENCERMIDI Tracks16Group16Pattern8 (per each track)Pattern Length64 measuresRecording MethodRealtime recording, Step recording, TR-RECEditing MethodPiano roll edit (Touch Edit/Automation support), MicroscopeSong1 (per Scene)File formatOriginal, SMF export/import supported
* PAD Sampler trigger data can be recorded.SMF PLAYERFormatSMF (Format 0/1)MIDI tracks16Tempo range5-300 BPMTranspose function-5-+6 semitoneTrack MuteYesTrack SoloYesA/B loop functionYes
* The pattern sequencer and SMF player can be used in each scene.
They cannot be used at the same time.SAMPLER - KEYBOARD MULTISAMPLEFormat16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported.Number of Samples2,048Number of Multisamples128Sampling TimeThe maximum is 2 minutes 44 second (1 Sample).
* A total of approximately 256 MB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.SAMPLER - PAD SAMPLERFormat16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supportedMaximum Polyphony8Number of Samples16 pads x 4 banksSampling TimeThe maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.SAMPLER - INTERNAL STORAGE SPACE FOR FILESSize2 GBOTHERSRhythm PatternYesArpeggiatorYesChord MemoryYesMotional PadYesPAD ModeSample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group PlayAIRA LINK* When connect to MX-1ControllersPitch Bend/Modulation lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 2 *1
4 x 4 Pad
*1: 1,024 step editing support

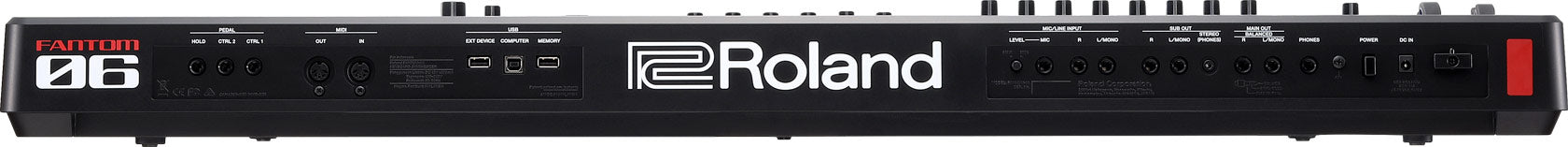

It can be use with Cutoff, Resonance.DisplayGraphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)ConnectorsHeadphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
Mic Input jacks: 1/4 inch TRS type
Line Input jacks: (L/MONO,R) (1/4 inch phone type)
FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (AUDIO/MIDI)
External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.Audio InterfaceMax 24 bit/96 KHz
Record 16 Stereo Channel
Playback 2 Stereo ChannelExternal MemoryUSB Flash drive (sold separately)Power SupplyAC AdaptorPower Consumption1,300 mAhAccessoriesOwner's Manual
AC adaptorOptions (sold separately)Keyboard Stand:
KS-11Z, KS-13, KS-20X
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash driveSIZE AND WEIGHTWidth1,006 mm
39-5/8 inchesDepth323 mm
12-3/4 inchesHeight95 mm
3-3/4 inchesWeight6.0 kg
13 lbs 4 oz
