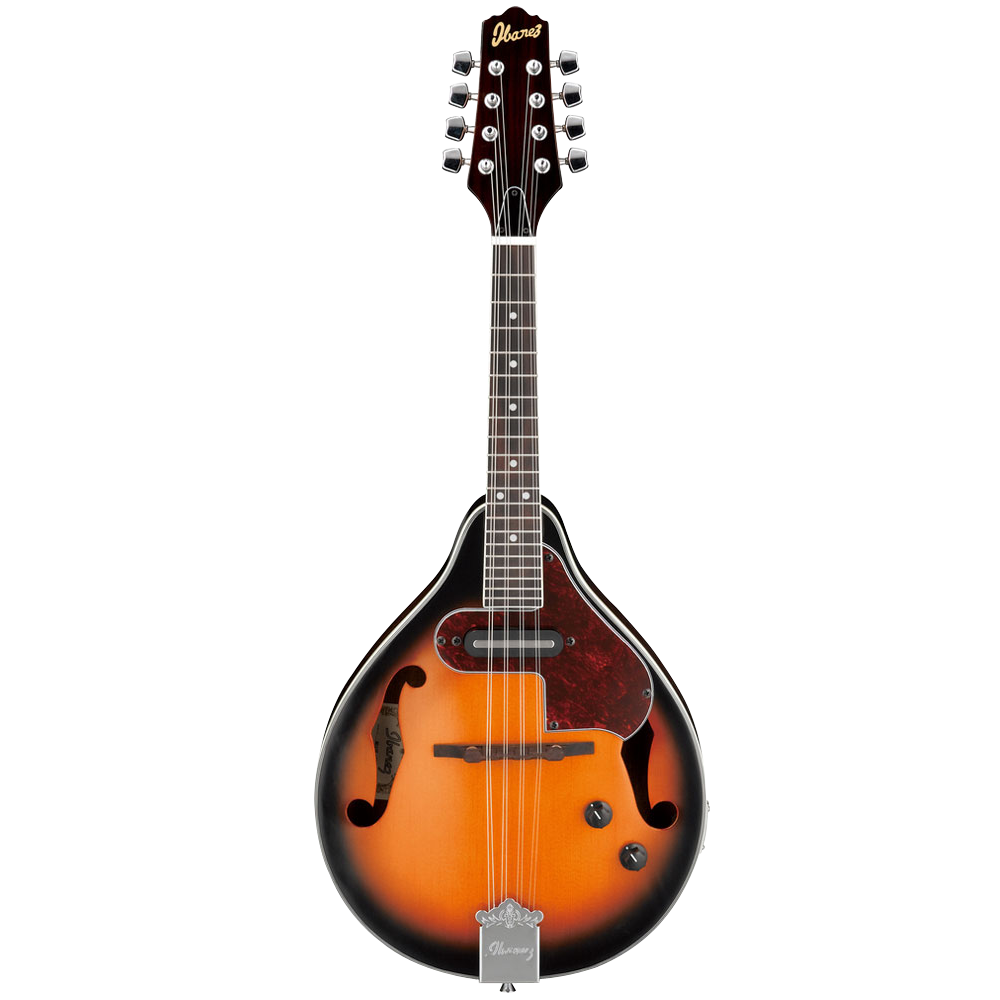

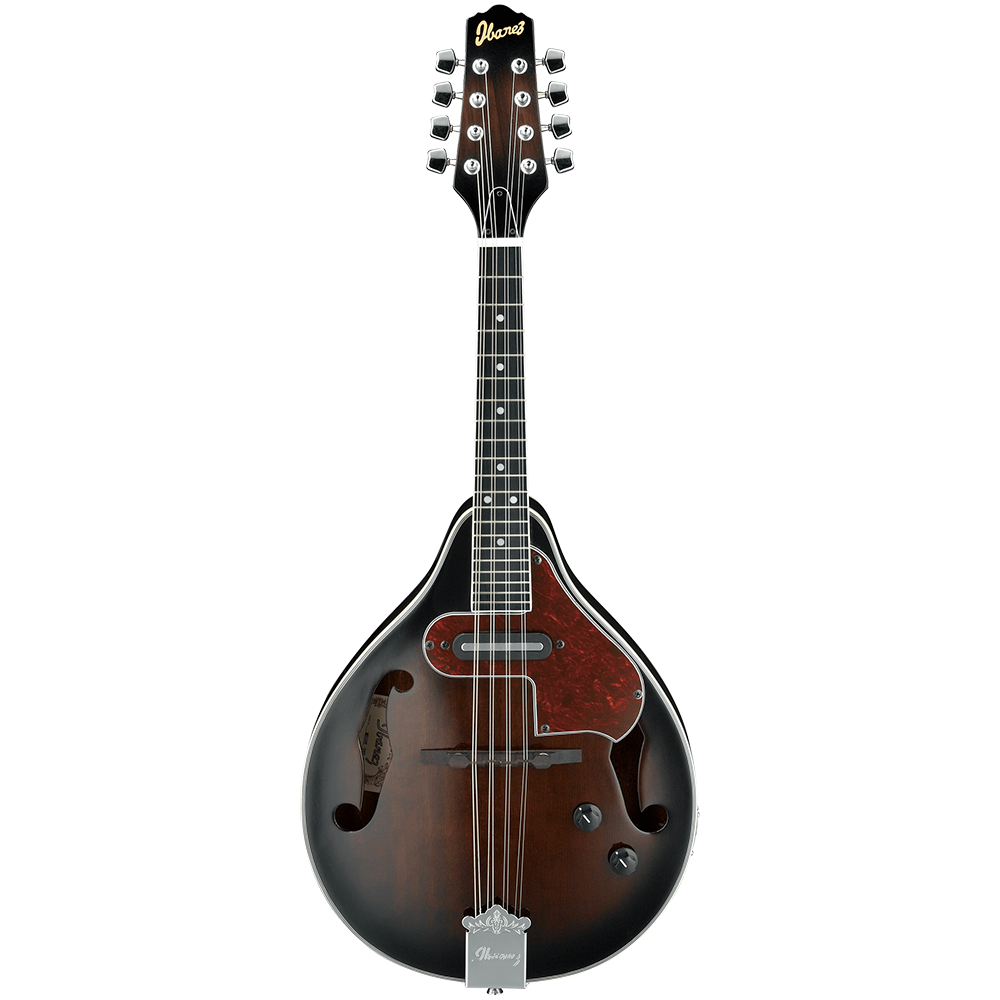

Ibanez Mandolin M510E W/Electronics

Specifications

• Body shape A-style body
• Top Spruce top
• Back & sides Sapele back & Sapele sides
• Neck MOkoume neck
• Fretboard: Purpleheart fretboard
• Bridge: Purpleheart bridge
• Inlay White dot inlay
• Tuning machine Chrome Mandolin tuners
• Number of frets: 20
• Saddle material Purpleheart
• String gauge: .010/.014/.024/.034
• String space: 10mm
• Factory tuning: 1E,2A,3D,4G
• Pickup Magnetic single
• Output jack 1/4" output

Neck Dimensions

• Scale: 350mm/13.8"
• A: Width 30mm at NUT
• B: Width 40mm at 14F
• C: Thickness 22mm at 1F
• D: Thickness 24.5mm at 7F
• Radius: Flat

Body Dimensions

• A: Length 13 5/8"
• B: Width 10 7/8"
• C: Max Depth 2 "
