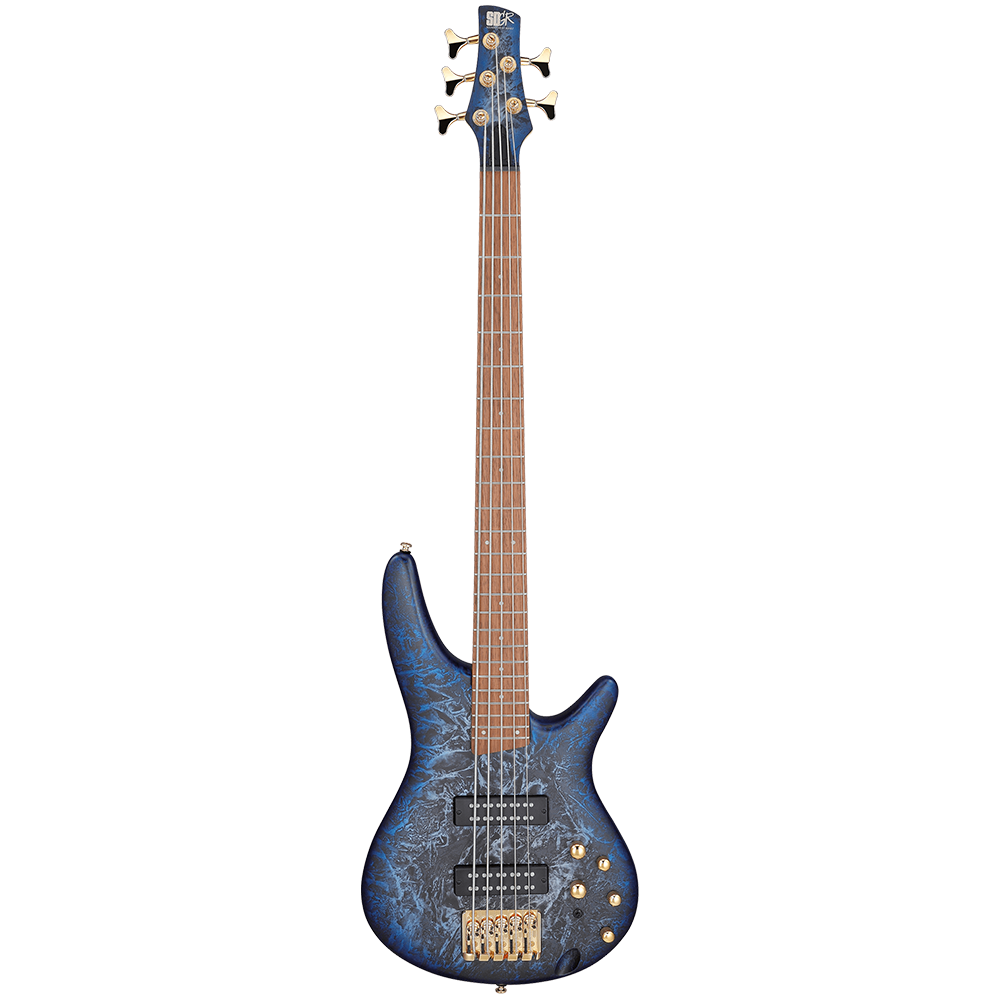

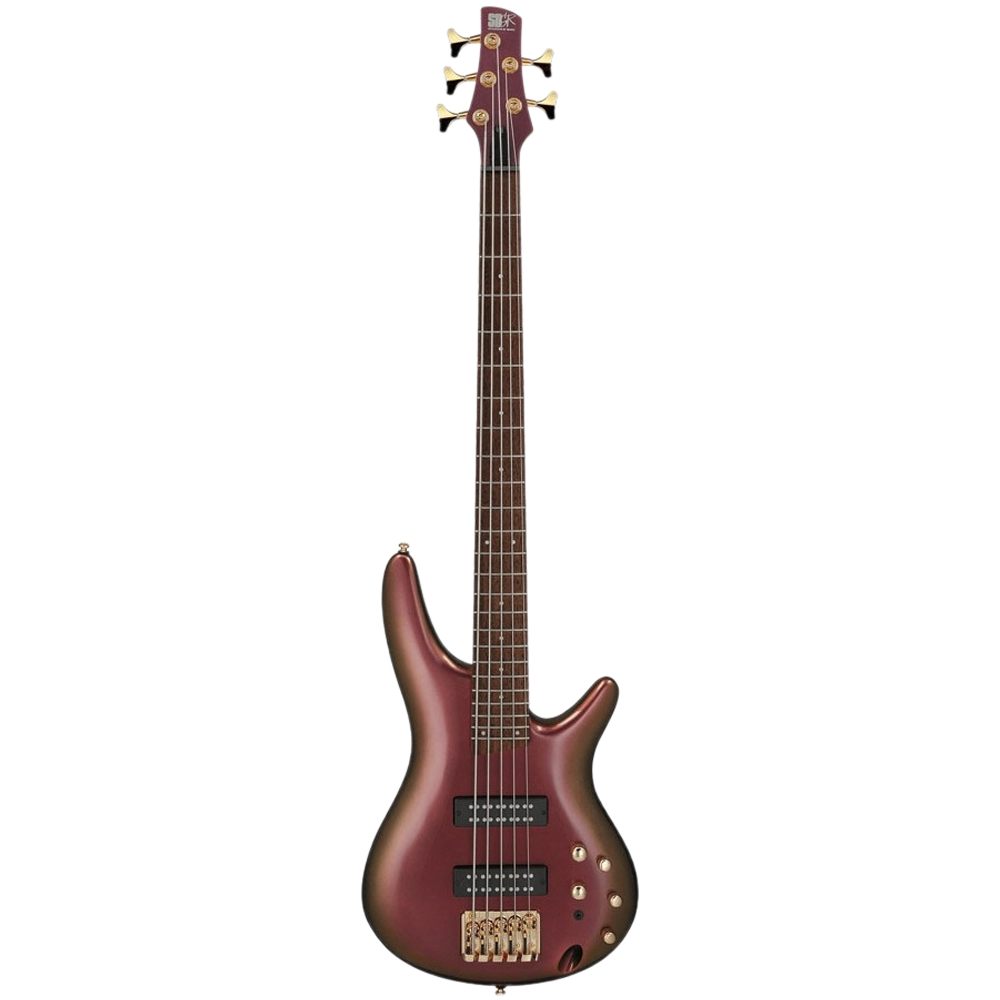

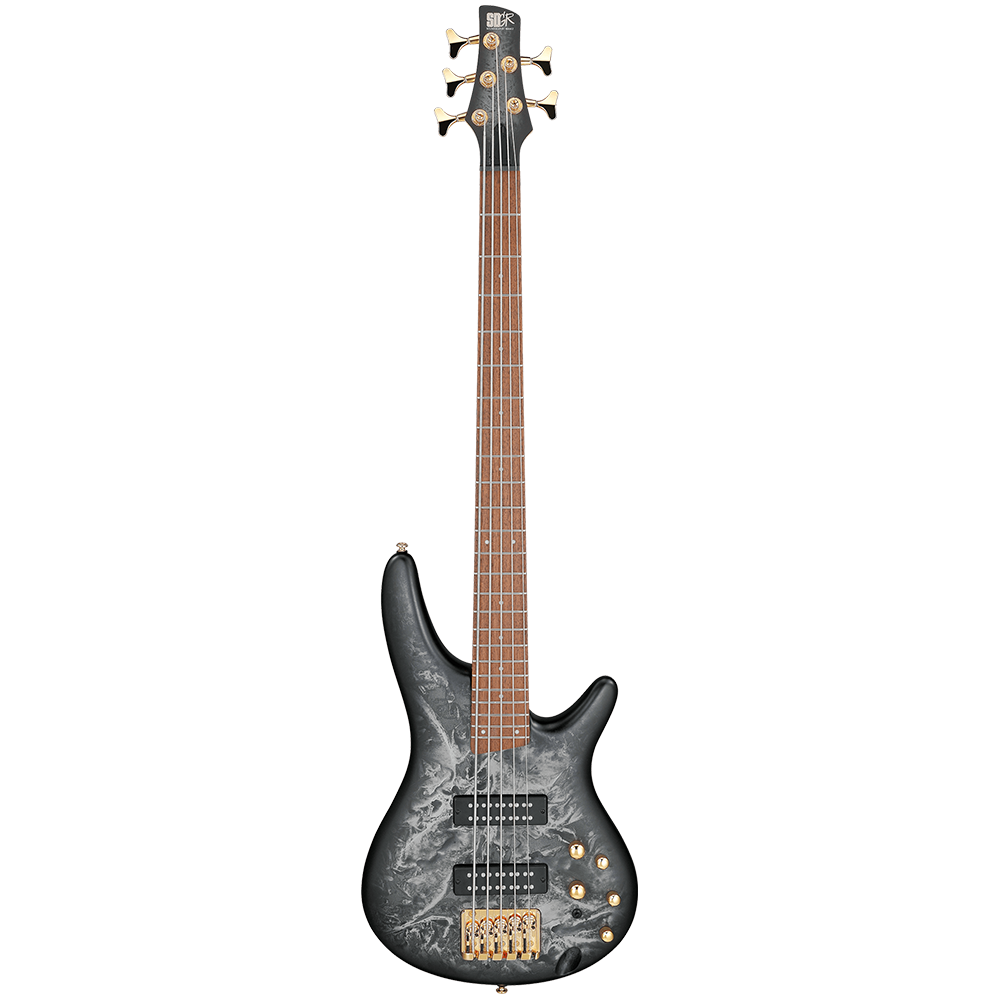

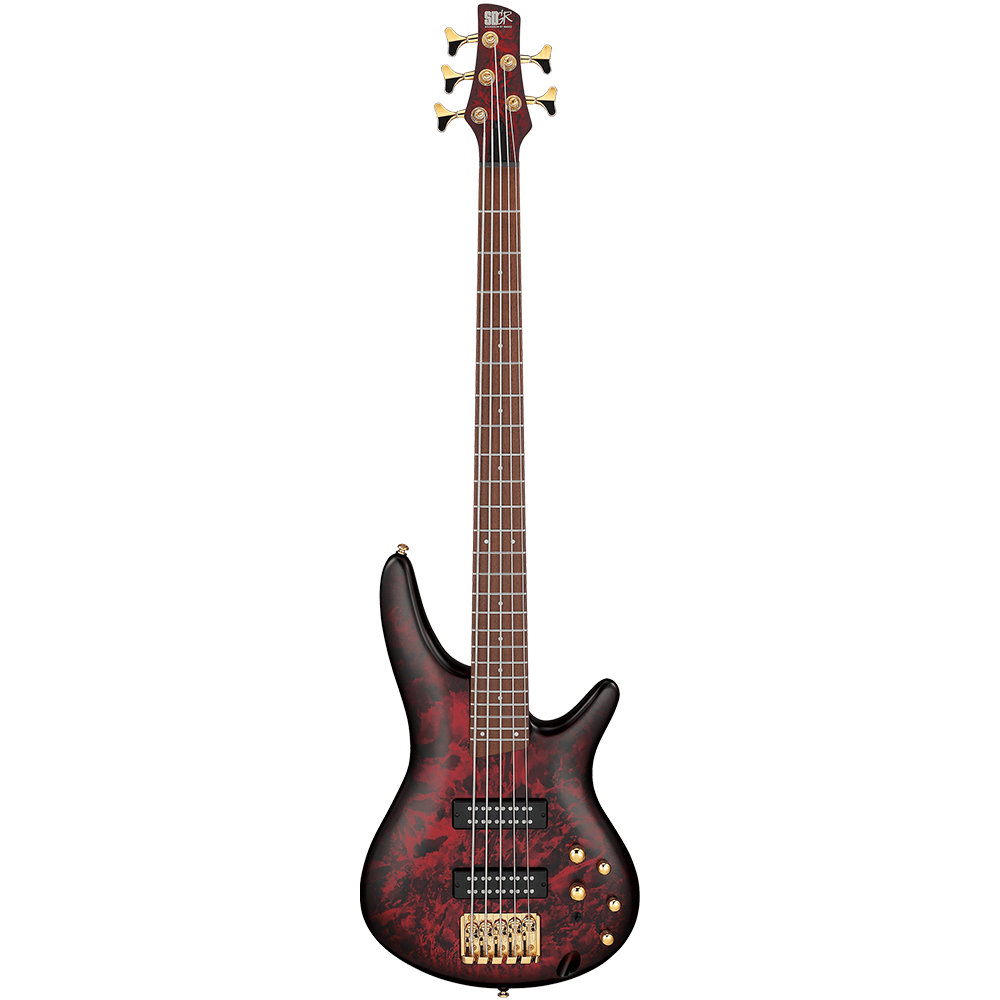

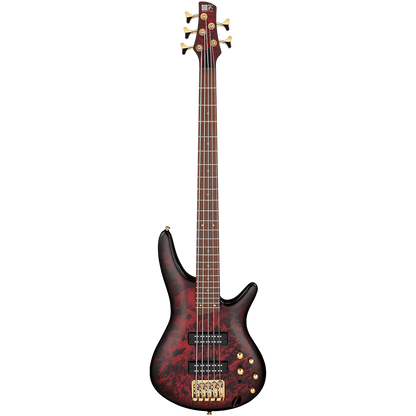

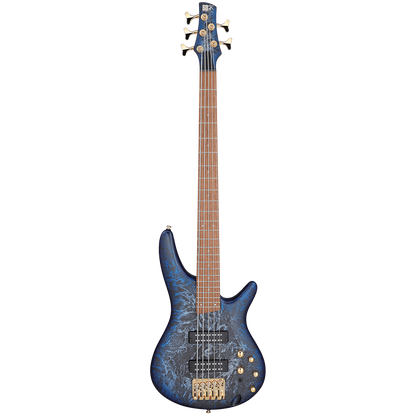

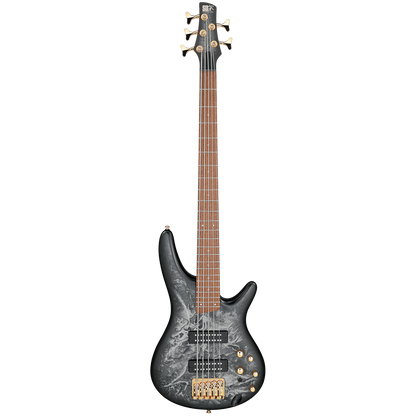

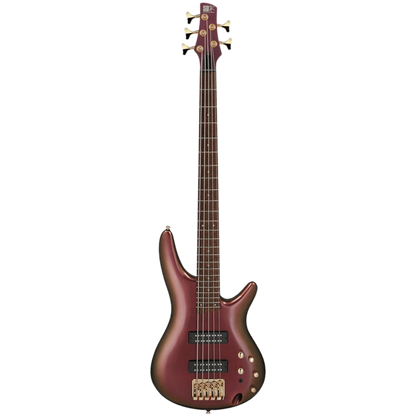

Ibanez SR305EDX SR Series Standard Bass Guitar

Specifications

• Neck type: SR5/5pc Maple/Walnut neck
• Top/back/body: Nyatoh body
• Fretboard: Jatoba fretboard/White dot inlay
• Fret: Medium frets
• Number of frets: 24
• Bridge: Accu-cast B505 bridge
• String space: 16.5mm
• Neck pickup: PowerSpan Dual Coil neck pickup(Passive)
• Bridge pickup: PowerSpan Dual Coil bridge pickup(Passive)
• Equaliser Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch
• Factory tuning: 1G,2D,3A,4E,5B
• Strings: D'Addario® EXL165 + .130
• String gauge: .045/.065/.085/.105/.130
• Hardware color: Gold

Neck Dimensions

• Scale: 864mm/34"
• A: Width 45mm at NUT
• B: Width 68mm at 24F
• C: Thickness 19.5mm at 1F
• D: Thickness 21.5mm at 12F
• Radius: 305mmR

Controls

Frequency Response

Other Features

• Recommennded Case MB300C
• Recommended Bag: IBB540-BK

Features5pc Maple/Walnut neck

The 5pc Maple/Walnut neck provides tonal clarity and superior attack. PowerSpan Dual Coil pickups Developed by Ibanez, the exposed pole pieces of the PowerSpan Dual Coil pickups produce a stronger signal and increase the response of the higher frequencies without sacrificing low end. The result is a tone rich in harmonic detail and dynamic expression. Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch The 3-band EQ works in conjunction with a coil tap switch for maximum control over a wide variety of professional bass tones. Tap Mode (single coil) creates a punchy, dynamic sound with superior articulation. Series Mode (humbucking) delivers a full, warm tone, and Power Tap Mode provides the best of both worlds-combining the clarity of the single coil with the fat bottom end of the humbucker. Jatoba Fretboard Jatoba has a reddish brown color which produces a rich mid range with a crisp high end. Accu-cast B500 bridge The Accu-cast B500 bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.
