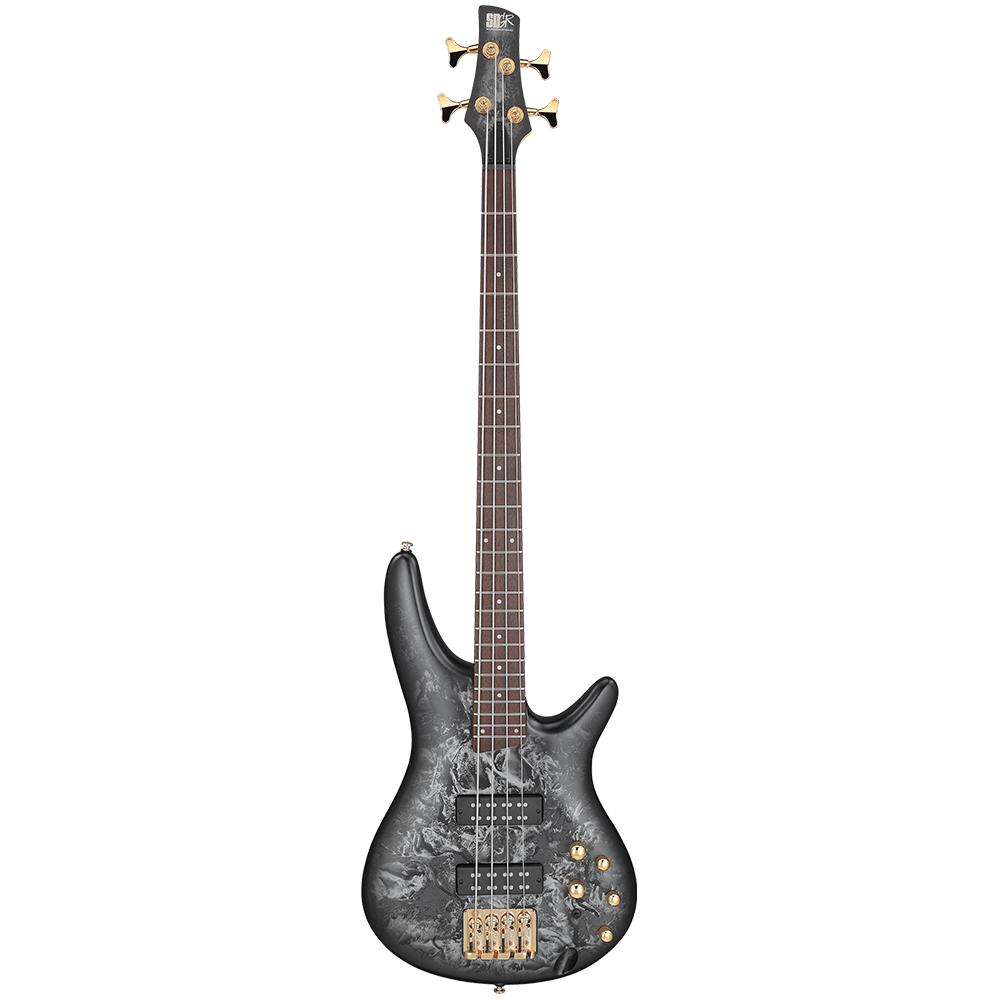

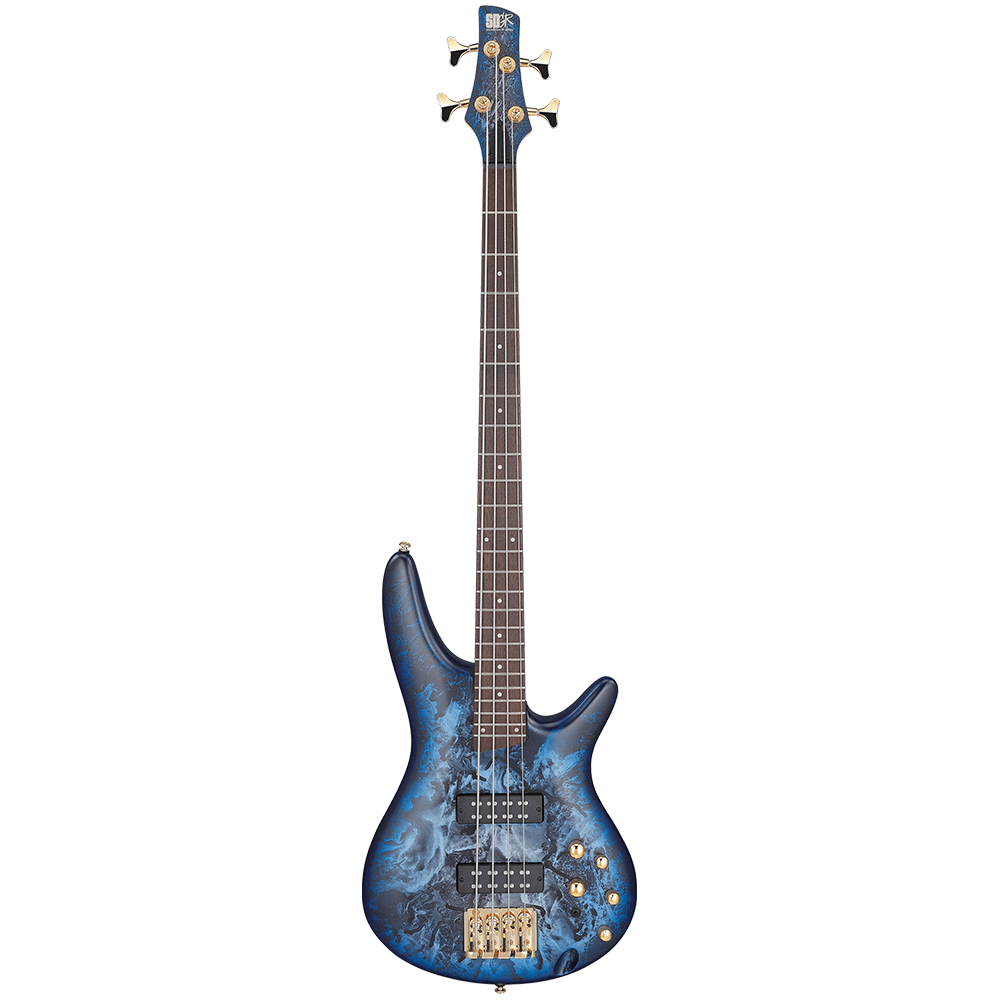

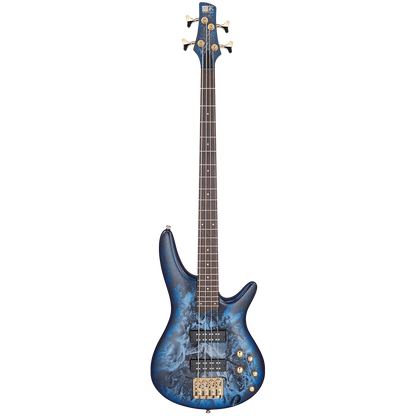

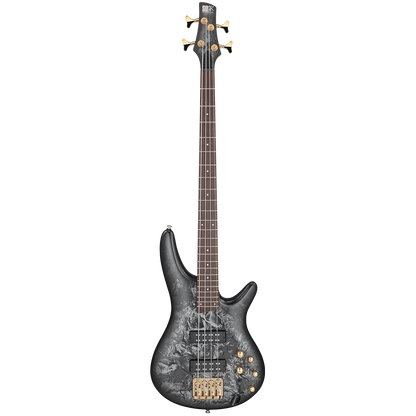

Ibanez SR300EDX SR Series Standard Bass Guitar
Specifications
- Neck type: SR4/5pc Maple/Walnut neck
- Top/back/body: Nyatoh body
- Fretboard: Jatoba fretboard/White dot inlay
- Fret: Medium frets
- Number of frets: 24
- Bridge: Accu-cast B500 bridge
- String space: 19mm
- Neck pickup: PowerSpan Dual Coil neck pickup(Passive)
- Bridge pickup: PowerSpan Dual Coil bridge pickup(Passive)
- Equaliser Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch
- Factory tuning: 1G,2D,3A,4E
- Strings: D'Addario® EXL165
- String gauge: .045/.065/.085/.105
- Hardware color: Gold
Neck Dimensions
- Scale: 864mm/34"
- A: Width 38mm at NUT
- B: Width 62mm at 24F
- C: Thickness 19.5mm at 1F
- D: Thickness 21.5mm at 12F
- Radius: 305mmR
Controls
Frequency Response
Other Features
- Recommennded Case MB300C
- Recommended Bag: IBB540-BK
Features5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack. PowerSpan Dual Coil pickups Developed by Ibanez, the exposed pole pieces of the PowerSpan Dual Coil pickups produce a stronger signal and increase the response of the higher frequencies without sacrificing low end. The result is a tone rich in harmonic detail and dynamic expression. Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch The 3-band EQ works in conjunction with a coil tap switch for maximum control over a wide variety of professional bass tones. Tap Mode (single coil) creates a punchy, dynamic sound with superior articulation. Series Mode (humbucking) delivers a full, warm tone, and Power Tap Mode provides the best of both worlds-combining the clarity of the single coil with the fat bottom end of the humbucker. Jatoba Fretboard Jatoba has a reddish brown color which produces a rich mid range with a crisp high end. Accu-cast B500 bridge The Accu-cast B500 bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.
