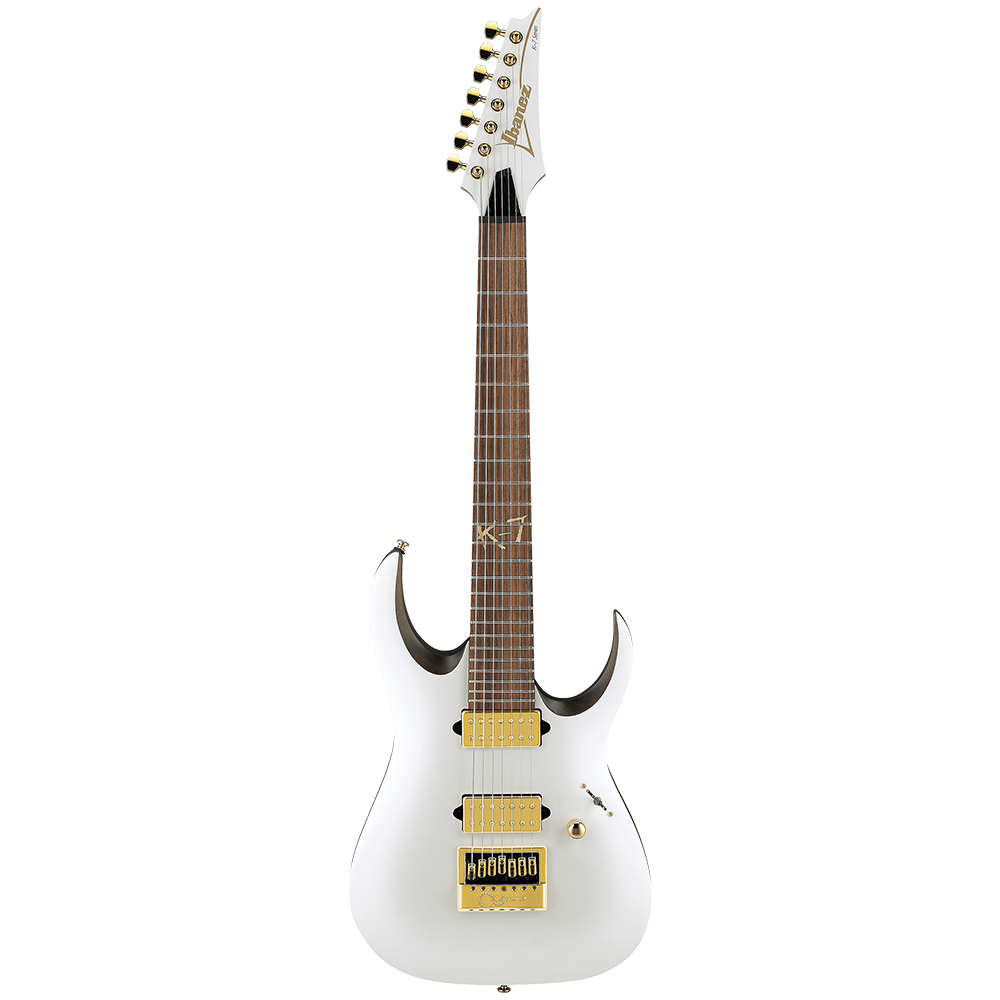

Ibanez Signature Series K7YANG Electric Guitar
Specifications
- Neck type: M80M/5pc Maple/Walnut neck w/KTS™ TITANIUM rods
- Top/back/body: Ash body
- Fretboard: Rosewood fretboard
- Fret: Jumbo frets
- Number of frets: 24
- Bridge: FX Edge III-8 bridge
- String space: 10.8mm
- Bridge pickup: Lundgren Model M8P (H) bridge pickup (Passive/Ceramic)
- Factory tuning: 1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F
- Strings: D'Addario® EXL120-8
- String gauge: .009/.011/.016/.024/.032/.042/.054/.065
- Nut: Locking nut
- Hardware color: Black
Neck Dimensions
- Scale: 747mm/29.4"
- A: Width 55mm at NUT
- B: Width 80mm at 24F
- C: Thickness 20mm at 1F
- D: Thickness 21.5mm at 12F
- Radius: 400mmR
Switching System
Controls
Other Features
- Recommended Case: M300C
- Recommended Bag: IGB540-BK
- Gotoh® machine heads
- Luminescent side dot inlay
Features
Wizard II-7 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.
DiMarzio® Blaze™ H-H pickups
DiMarzio® Blaze™ pickups were first introduced for our Universe guitars. With a scooped mid-range and just-right output level, they can handle everything from jazzy-clean tone to heavily distorted sound.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
EverTune® bridge
The EverTune® bridge system keeps the guitar in tune under any conditions.
Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
