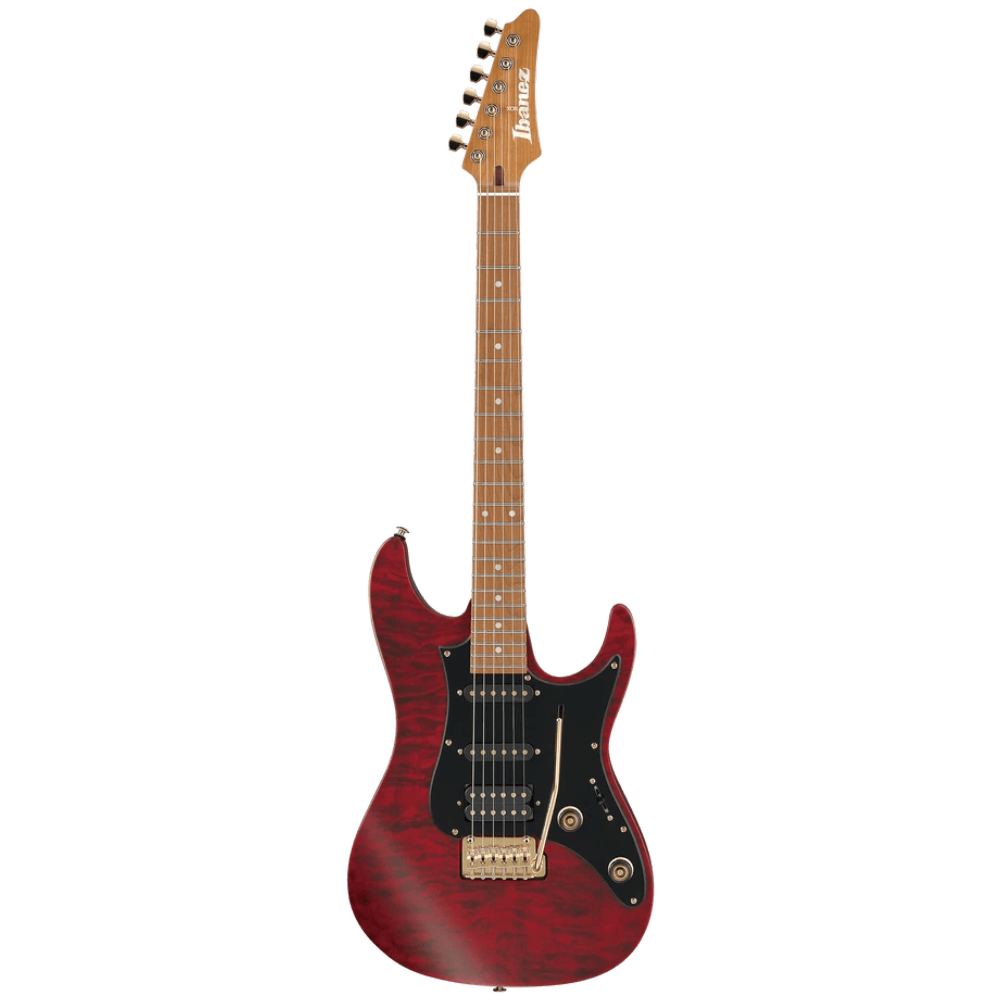

Ibanez Signature Series SLM10-TRM Electric Guitar

Color Variation: Transparent Red Matte

The SLM10 is an AZ series solid body electric guitar model introduced by Ibanez. It is the first Ibanez signature model for American guitarist Scott LePage of

the instrumental rock band Polyphia. It was produced in Indonesia as part of the mid-tier Premium line.

The SLM10 features a quilted maple top on an American basswood body bolted to a one-piece roasted maple neck with a roasted maple fingerboard with 22 stainless steel frets, pearloid dot position markers and luminescent side dots. Components include DiMarzio pickups mounted in a black pickguard with a custom IGNO humbucker at the bridge and True Velvet single-coils in the neck and middle positions, a T1502 two-point synchronized tremolo bridge, a Graph Tech TUSQ nut, an angled output jack, Gotoh locking tuning machines and Sure Grip knobs.

Specifications

• Neck type: AZ Oval C Roasted Maple neck
• Top/back/body: Quilted Maple top American Basswood body
• Fretboard: Roasted Maple fretboard White dot inlay
• Fret: Jumbo Stainless Steel frets
• Number of frets: 22
• Bridge: Gotoh T1502 tremolo bridge
• String space: 10.5mm
• Neck pickup: DiMarzio True Velvet (S) neck pickup (Passive/Alnico)
• Middle pickup: DiMarzio True Velvet (S) middle pickup (Passive/Alnico)
• Bridge pickup: DiMarzio IGNO (H) bridge pickup (Passive/Alnico)
• Factory tuning: 1E, 2B,3G, 4D,5A,6E
• Strings: D'Addario EXL110
• String gauge.010/.013/.017/.026/.036/.046
• Nut: Graph Tech
• Hardware color: Gold

Neck Dimensions

• Scale: 648mm/25.5"
• A: Width 42mm at NUT
• B: Width 56.4mm at 22F
• C: Thickness 20.5mm at 1F
• D: Thickness 22.5mm at 12F
• Radius: 305mmR

Controls

Controls

Other Features

• Recommended Case: MR500C
• Gotoh MG-T locking machine
• Luminescent side dot inlay
• Gig bag included

Features

DiMarzio IGNO Humbucker Pickup/DiMarzio True Velvet Single Coil Pickup

Scott's custom DiMarzio IGNO humbucker and DiMarzio True Velvet pickups produce a warm response yet great clarity.

Super All Access Neck Joint

The Super All Access Neck Joint offers superior playability with its 8mm concave curve from the body top to the spherical surface of the joint area. By maximizing the joint area between the body and the neck, sustain and resonance are increased as well.

Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Roasted Maple fretboard w/White dot inlays

Heat-treatment treatment provides a well-balanced attack and tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

Gotoh T1502 tremolo bridge

T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings. Its snap-in construction makes it easy to load a tremolo arm.

Gotoh MG-T locking machine heads

The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Graph Tech TUSQ XL nut/Stainless Frets

The super smooth Graph Tech nut increases tuning stability, sustain and clarity of sound. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
