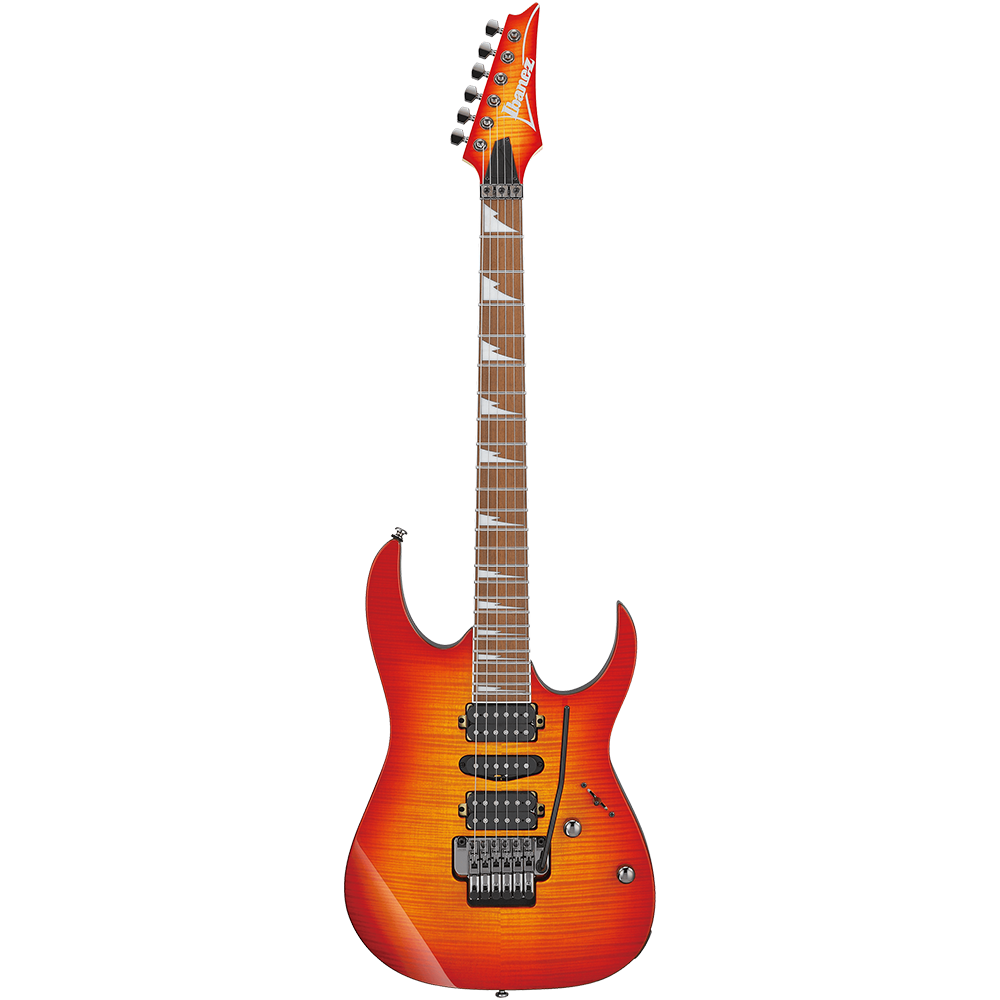

Ibanez RG Series RG470DXFM-CS Electric Guitar
Color Variation: Cherry Sunburst
Specifications
- Neck type: Wizard III/Maple neck
- Top/back/body: Flamed Maple top/Meranti body
- Fretboard: Jatoba fretboard/Sharktooth inlay
- Fret: Jumbo frets
- Number of frets: 24
- Bridge: Edge-Zero II bridge
- String space: 10.8mm
- Neck pickup: Quantum (H) neck pickup (Passive/Ceramic)
- Middle pickup: Quantum (S) middle pickup (Passive/Alnico)
- Bridge pickup: Quantum (H) bridge pickup (Passive/Ceramic)
- Factory tuning: 1E,2B,3G,4D,5A,6E
- Strings: D'Addario® EXL120
- String gauge: .009/.011/.016/.024/.032/.042
- Nut: Locking nut
- Hardware color: Cosmo Black
Neck Dimensions
- Scale: 648mm/25.5"
- A: Width 43mm at NUT
- B: Width 58mm at 24F
- C: Thickness 19mm at 1F
- D: Thickness 21mm at 12F
- Radius: 400mmR
Switching System
Controls
Other Features
- Recommended Case: M300C
- Recommended Bag: IGB540-BK
Features
Wizard III Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Edge-Zero II tremolo bridge
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.
Flamed Maple top / Meranti body
The Flamed Maple top flaunts a beautiful wood grain. The Meranti body provides a scooped mid-ranged sweet tone.
Quantum H-S-H pickups
The Quantum pickups have a quick low-end response to picking and are able to capture fast passages with precise note definition, while delivering a full-bodied mid-to-high range.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
