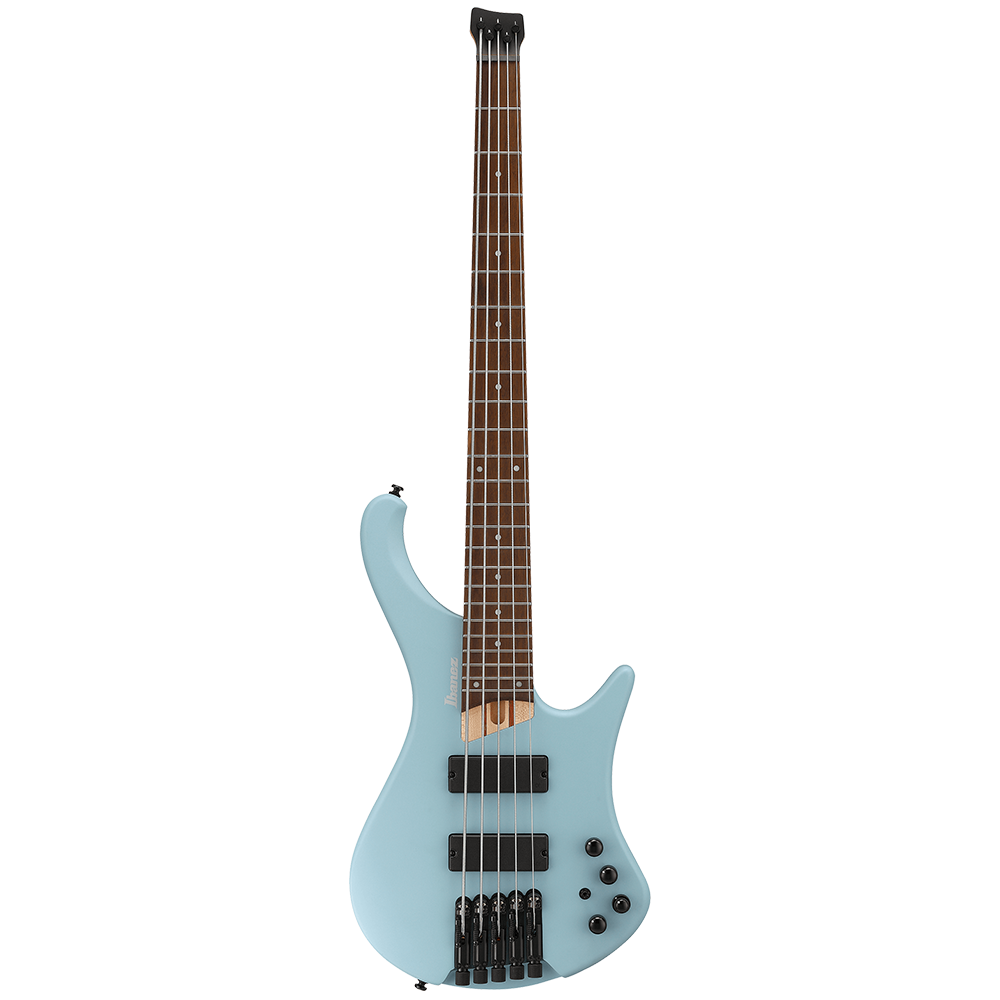

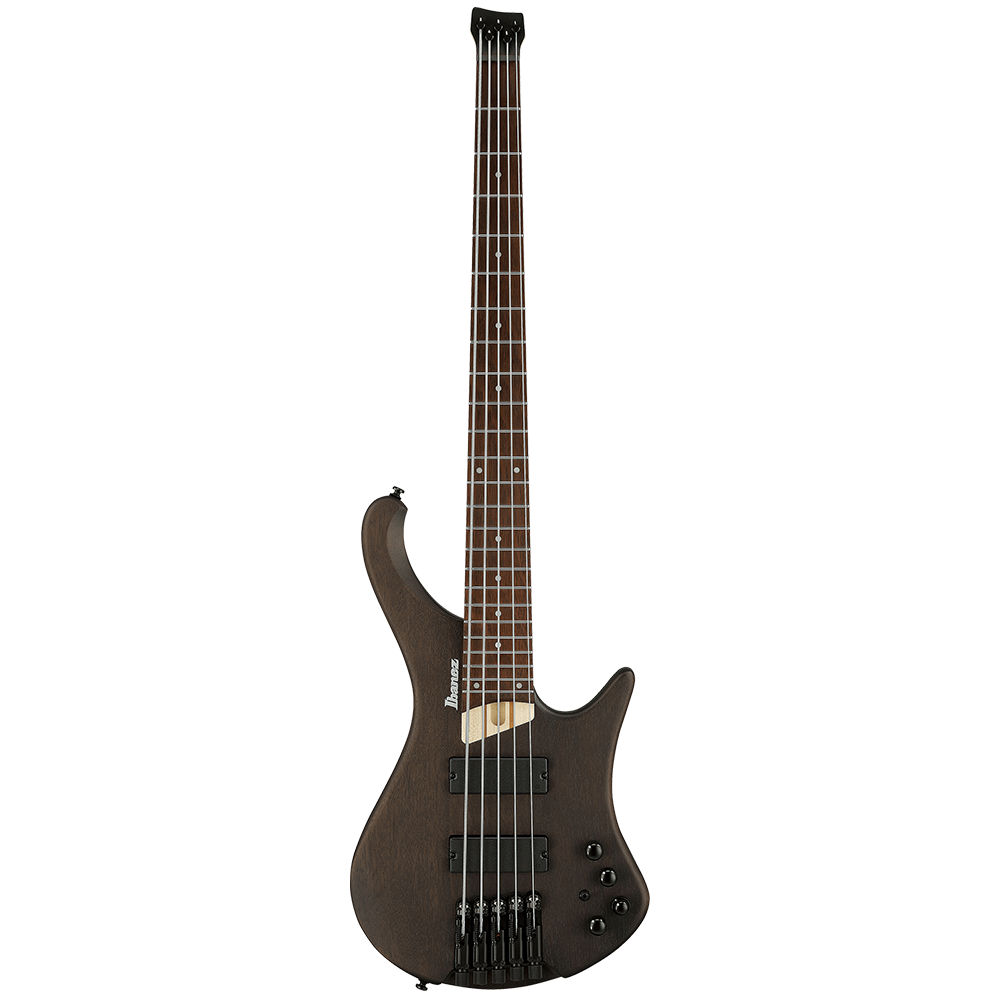

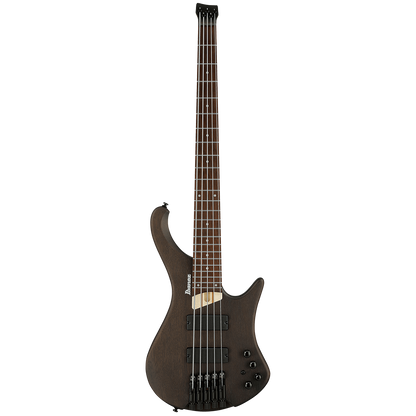

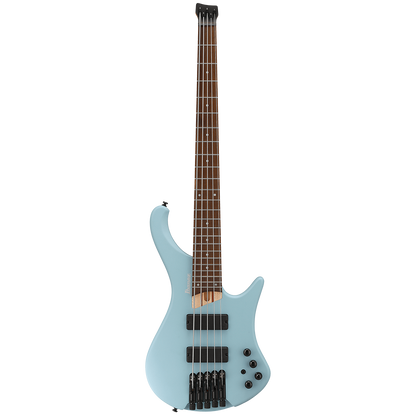

Ibanez EHB Series EHB605 Bass Guitar 5 String W/Bag

Specifications

• Neck type: EHB5/5pc Maple/Jatoba neck
• Top/back/body: Okoume body
• Fretboard: Jatoba fretboard/White dot inlay
• Fret: Medium frets
• Number of frets: 24
• Bridge: MR5HS bridge
• String space: 18mm
• Neck pickup: α1 neck pickup (Passive)
• Bridge pickup: α1 bridge pickup (Passive)
• Equalizer: Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
• Factory tuning: 1G,2D,3A,4E,5B
• Strings: D'Addario® EXL165 + .130
• String gauge: .045/.065/.085/.105/.130
• Hardware color: Black

Neck Dimensions

• Scale: 864mm/34"
• A: Width 45mm at NUT
• B: Width 74mm at 24F
• C: Thickness 19.5mm at 1F
• D: Thickness 21.5mm at 12F
• Radius: 500mmR

Controls

Frequency Response

Other Features

• Recommended Case: MRB350C
• Ibanez custom headpieces

Features

5pc Maple/Jatoba neck

The 5pc Maple/Jatoba Neck with excellent strength provides an enriched resonance.

Medium frets

Medium sized frets enhance the accuracy of your notes.

Okoume body

The Okoume body provides a bright and solid sound.

Α1 pickups

α1 pickups deliver ultimate tonal clarity and openness with abundant mids and lows, popular characteristics among modern bass tones.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot): The Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones. The EQ bypass control offers precision tonal adjustments, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.

Comfortably rounded body edge

The rounded body edge contributes to playing-comfort and sophisticated look.

Ergonomic body design

The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.

Slanted body back

The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.

Ibanez custom headpieces

Rugged yet light-weight Ibanez custom headpieces enable strings to be easily set and released by a hex wrench from the back side.

Scooped cut on the body back

There is extra carving on the back of the body behind the lower horn for easier upper fret access.

MR5HS mono rail bridge w/string spacing adjustable saddles

The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
