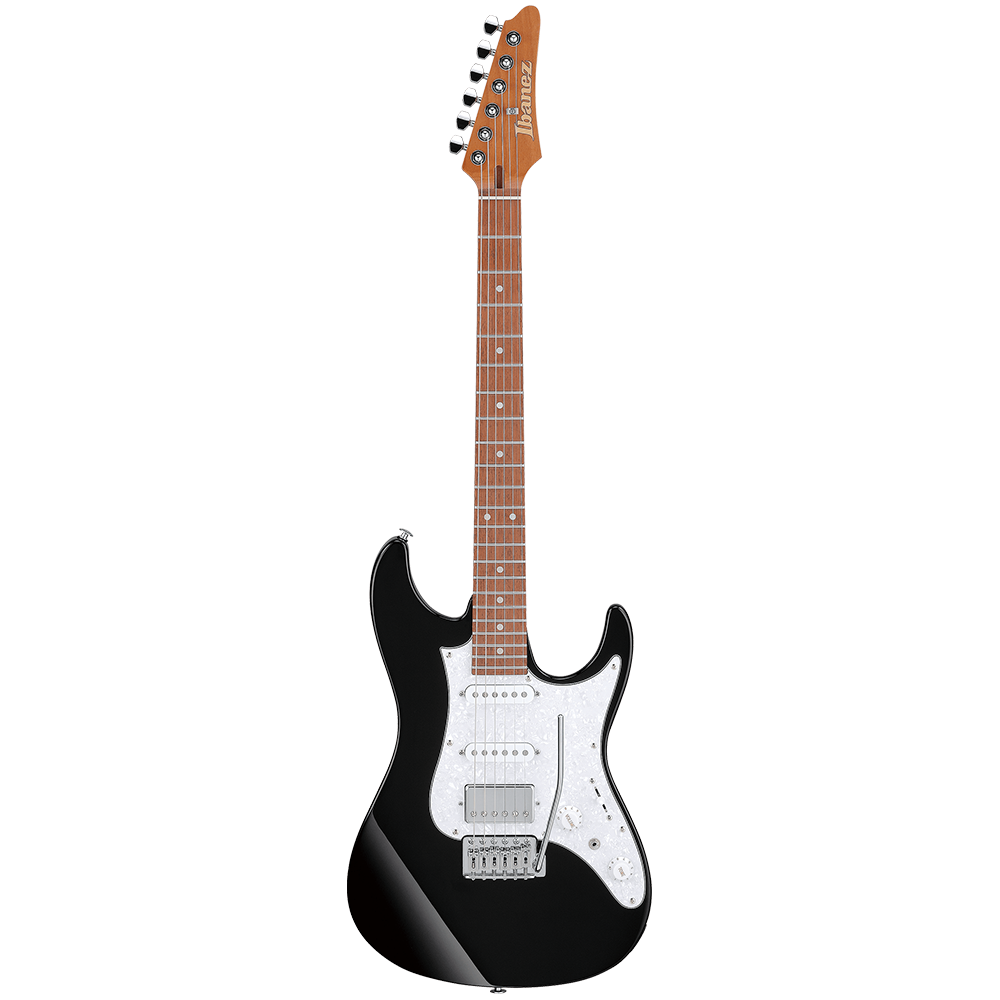

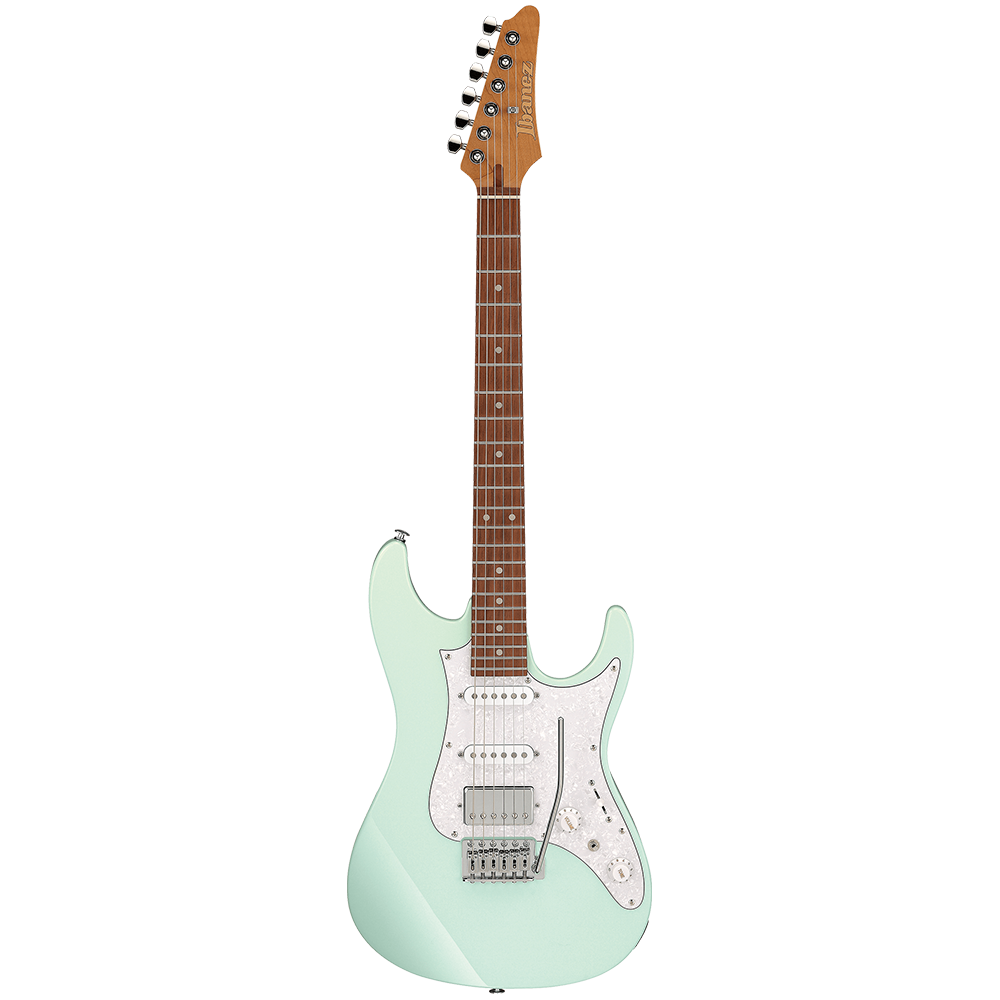

Ibanez AZ Standard Series AZ22S2 Electric Guitar

Specifications

• Neck type: AZ/Roasted Maple neck
• Top/back/body: Alder body
• Fretboard: Jatoba fretboard/White dot inlay
• Fret: Jumbo Stainless Steel frets
• Number of frets: 22
• Bridge: T106 bridge
• String space: 10.5mm
• Neck pickup: Ibanez Classic Custom (S) neck pickup (Passive/Alnico)
• Middle pickup: Ibanez Classic Custom (S) middle pickup (Passive/Alnico)
• Bridge pickup: Ibanez Classic Custom (H) bridge pickup (Passive/Ceramic)
• Factory tuning: 1E,2B,3G,4D,5A,6E
• Strings
• String gauge: .010/.013/.017/.026/.036/.046
• Hardware color: Chrome

Neck Dimensions

• Scale: 648mm/25.5"
• A: Width 42mm at NUT
• B: Width 56.4mm at 22F
• C: Thickness 20.5mm at 1F
• D: Thickness 22.5mm at 12F
• Radius: 305mmR

Switching System

Controls

Other Features

• Recommended Case: M300C
• Recommended Bag: IGB540-BK
• Locking machine heads
• Dyna-MIX9 switching system w/Alter Switch

Features

Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Jatoba fretboard

Jatoba has a reddish brown color and produces a rich mid range with a crisp high end.

Jumbo Stainless Steel frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

Locking machine heads

Locking machine heads ensure accurate and stable tuning.

Alder body

The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Ibanez Classic Custom pickups

Ibanez Classic Custom pickups offer a versatile tonal palette, combining the warm, clear sound of alnico neck and middle single-coil pickups with the powerful, dynamic output of a ceramic bridge humbucker. This unique blend delivers precise articulation and expressive tone.

T106 tremolo

The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy.

Dyna-MIX9 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
