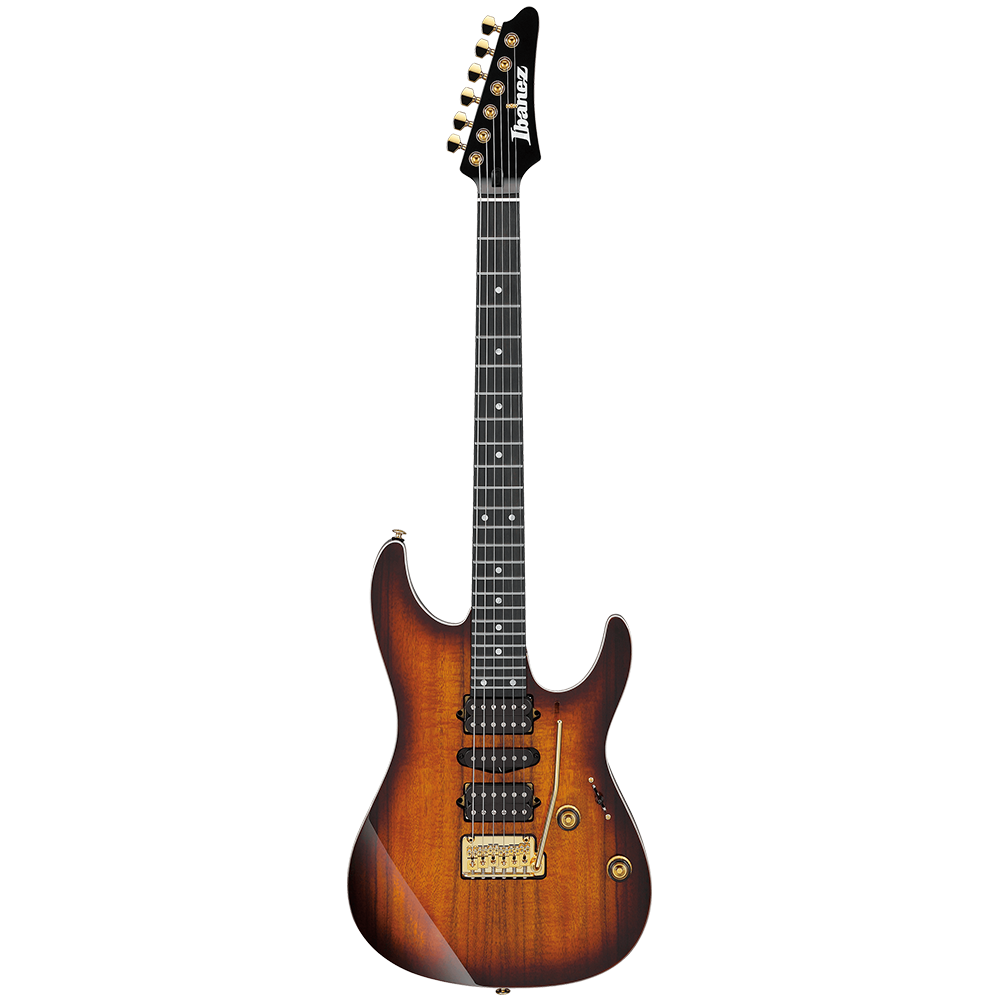

Ibanez AZ Series Premium AZ47P2K-DEB Electric Guitar W/Bag
Color Variation: ：Dragon Eye Burst
Specifications
- Neck type: AZ Oval C/Roasted Maple neck
- Top/back/body: Hawaiian Koa top/American Basswood body
- Fretboard: Ebony fretboard/Mother of Pearl dot inlay
- Fret: Jumbo Stainless Steel frets
- Number of frets: 24
- Bridge: Gotoh® T1502 bridge
- String space: 10.5mm
- Neck pickup: DiMarzio® Air Norton™ (H) neck pickup (Passive/Alnico)
- Middle pickup: DiMarzio® True Velvet™ (S) middle pickup (Passive/Alnico)
- Bridge pickup: DiMarzio® The Tone Zone® (H) bridge pickup (Passive/Alnico)
- Factory tuning: 1E,2B,3G,4D,5A,6E
- Strings: D'Addario® EXL110
- String gauge: .010/.013/.017/.026/.036/.046
- Nut: Graph Tech® nut
- Hardware color: Chrome
Neck Dimensions
- Scale: 648mm/25.5"
- A: Width 42mm at NUT
- B: Width 57mm at 24F
- C: Thickness 20.5mm at 1F
- D: Thickness 22.5mm at 12F
- Radius: 305mmR
Switching System
Controls
Other Features
- Recommended Case: MR500C
- Gig bag included
- Luminescent side dot inlay
- Gotoh® MG-T locking machine heads
Features
DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Hawaiian Koa top / American Basswood body
Hawaiian Koa top with a beautiful appearance provides a quick and bright attack on high end. American Basswood body delivers a natural and flat tone.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.
Gotoh® T1502 tremolo bridge
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.
Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
