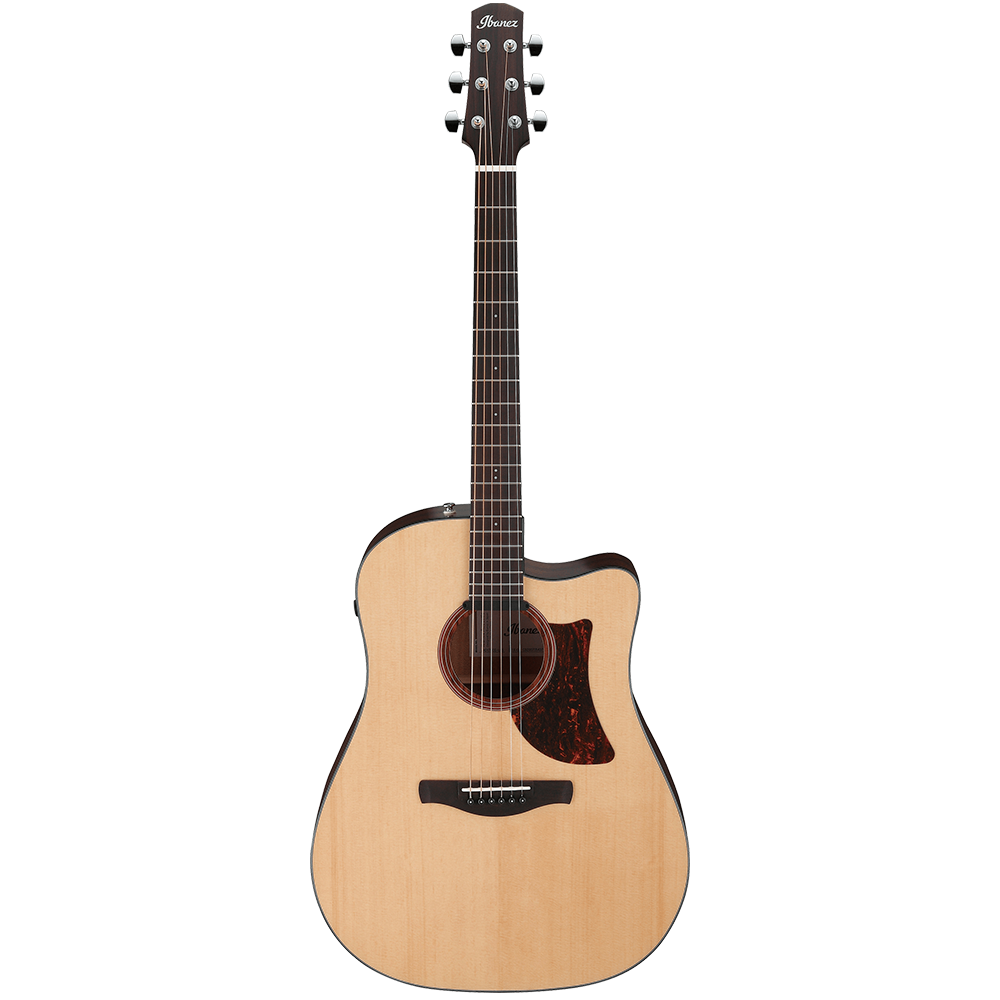

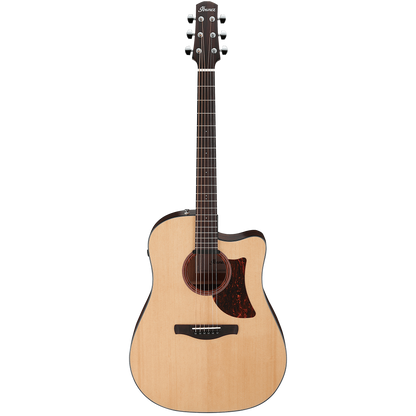

Ibanez AE Series AAD170CE LGS Acoustic Guitar
Color Variation: ：Natural Low Gloss
Specifications
- body shape Grand Dreadnought with Advanced Access Cutaway body
- bracing X-M Bracing
- top Solid Sitka Spruce top
- back & sides Okoume back & Okoume sides
- neck Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ Nyatoh neck
- Fretboard: Ovangkol fretboard
- Bridge: Ovangkol scalloped bridge
- inlay White dot inlay
- soundhole rosette Wooden rosette with Soundhole binding rosette
- tuning machine Chrome Die-cast tuners (18:1 gear ratio)
- Nut: material Bone
- Number of frets: 20
- saddle material Compensated Bone saddle
- Bridge: pins Ibanez Advantage™
- Strings: D'Addario® XTAPB1253
- String gauge: .012/.016/.024/.032/.042/.053
- String space: 11mm
- Factory tuning: 1E,2B,3G,4D,5A,6E
- pickup Ibanez AP11 Magnetic
- preamp Ibanez Custom Electronics w/ Volume and Tone Control
- output jack 1/4" Endpin Jack
Neck Dimensions
- Scale: 651mm/25.6"
- A: Width 43mm at NUT
- B: Width 55mm at 14F
- C: Thickness 21mm at 1F
- D: Thickness 22mm at 7F
- Radius: 400mmR
Body Dimensions
- A: Length 20 3/8"
- B: Width 16 1/4"
- C: Max Depth 5 "
Preamp
Other Features
- Recommended Case: FS40DA
- Recommended Bag: IAB540-BK
Features
X-M Bracing
Grand Dreadnought bodyThrough a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.
Advanced Access Cutaway
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
Low Oval Grip Thermo Aged™ Nyatoh neck with Rounded Fretboard Edge
Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.
Functional Tapered Headstock
The Low Oval neck grip is designed for easy chord strumming and the Rounded Fretboard Edges provides superior playability. Thermo Aged, a special drying process, makes the neck light and hard and provides stability and better resonance.
Ibanez AP11 Magnetic pickup
The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.
Ovangkol Scalloped bridge
The AP11 pickup is small, lightweight and positioned so it won't inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar's natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus and many others.
Ovangkol fretboard
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.
Okoume back and sides
The Ovangkol fretboard provides greater playing comfort.
Ibanez Advantage™ bridge pins
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
