Boss Dual Cube LX 2 x 4-inch 10-watt Portable Combo Amp

Power Output:

• Rated Power Output: 10 W (5 W + 5 W)

Nominal Input Levels:

• GUITAR/STEREO IN L, R: -10 dBu (1 MΩ)
• i-CUBE LINK/AUX IN: -20 dBu (15 kΩ)

Nominal Output Level:

• LINE OUT L/MONO, R: -10 dBu

Speakers:

• Speakers: 10 cm (4 inches) x 2

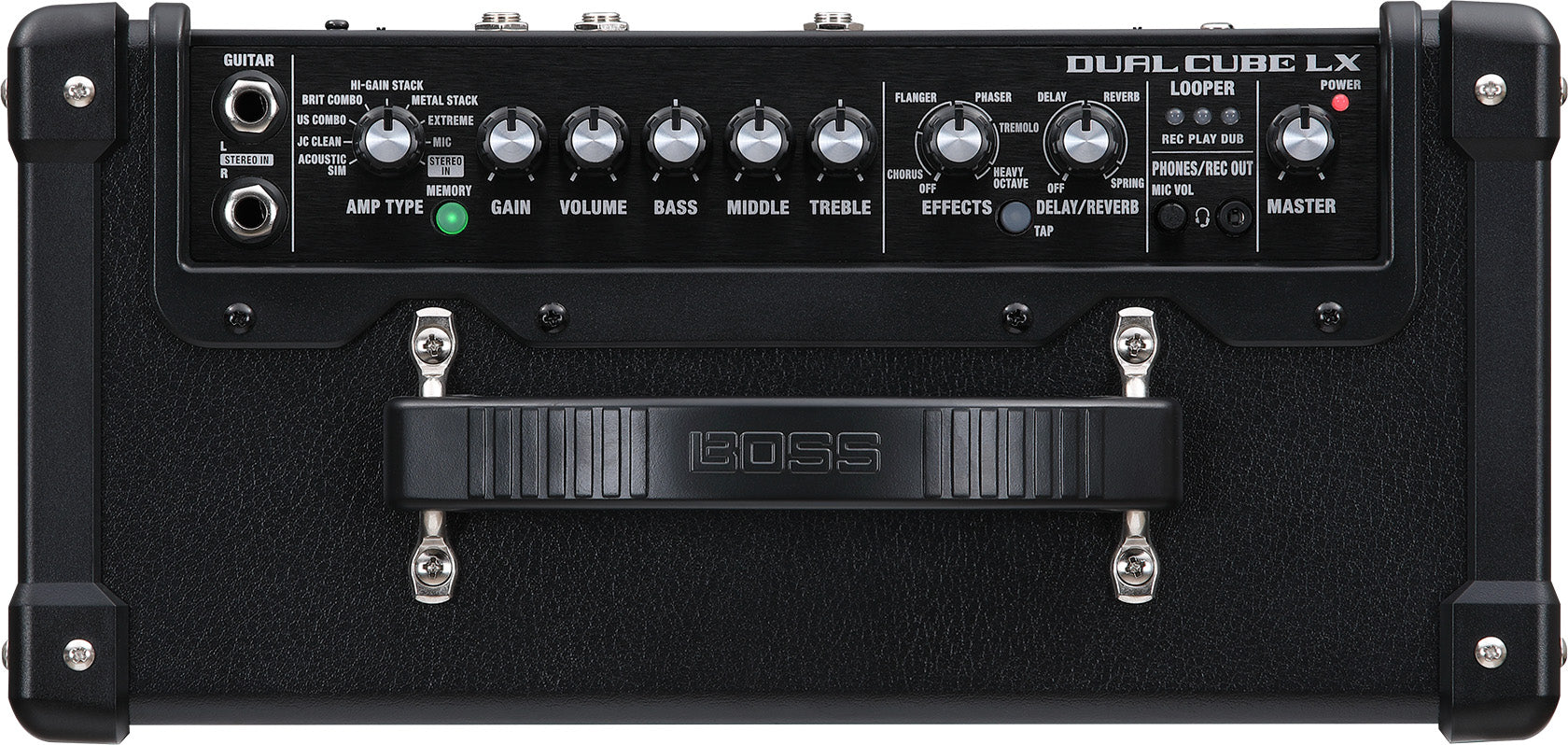

Controls:

• POWER Switch
• AMP TYPE Knob: Selects between different amp simulations (ACOUSTIC SIM, JC CLEAN, US COMBO, BRIT COMBO, HI-GAIN STACK, METAL STACK, EXTREME, MIC, STEREO IN)
• MEMORY Button
• GAIN Knob
• VOLUME Knob
• BASS Knob
• MIDDLE Knob
• TREBLE Knob
• EFFECTS Knob: Controls Chorus, Flanger, Phaser, Tremolo, Heavy Octave
• DELAY/REVERB Knob: Controls Delay, Reverb, Spring
• TAP Button
• MIC VOL Knob
• MASTER Knob
• LOOPBACK Switch (i-CUBE LINK/AUX IN)
• LOOPBACK Switch (USB)

Indicators:

• POWER
• MEMORY
• TAP
• REC
• PLAY
• DUB

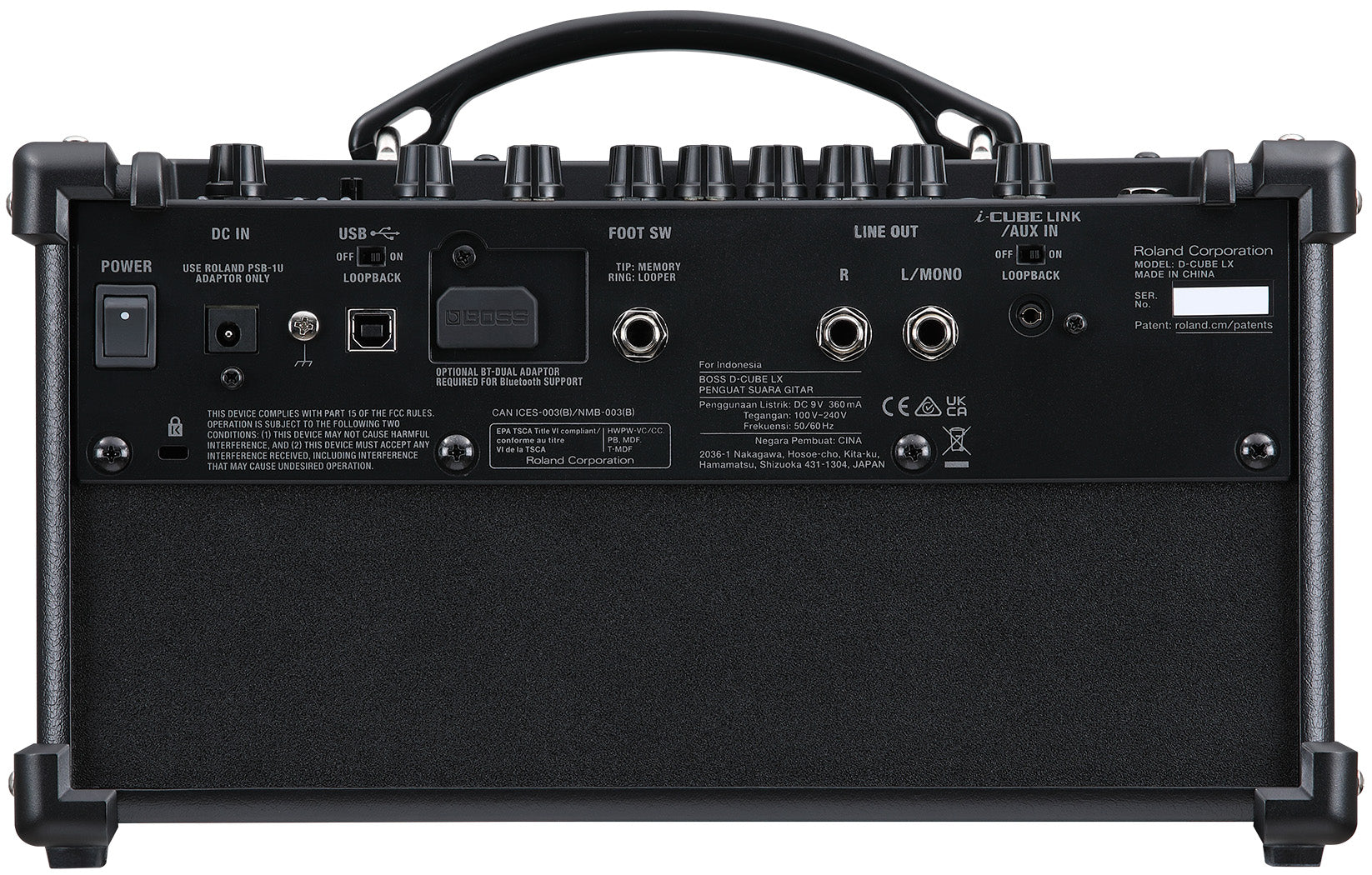

Connectors:

• GUITAR Jack / STEREO IN L, R Jacks: 1/4-inch phone type
• PHONES / REC OUT Jack: Stereo Miniature phone type (Stereo, CTIA)
• i-CUBE LINK / AUX IN Jack: Stereo Miniature phone type (Stereo, CTIA)
• LINE OUT L/MONO, R Jacks: 1/4-inch phone type
• FOOT SW Jack: 1/4-inch TRS phone type
• Bluetooth ADAPTOR Connector: Dedicated connector
• USB Port: USB B type
• DC IN Jack

Power Supply:

• AC Adaptor: DC 9 V
• Alkaline Battery (AA, LR6): 8 x AA
• Rechargeable Ni-MH Battery (AA, HR6): 8 x AA

Current Draw:

• Current Draw: 360 mA

Expected Battery Life:

• Alkaline Battery: Approximately 8 hours
• Rechargeable Ni-MH Battery: Approximately 10 hours (when using batteries with a capacity of 2,500 mAh)
  (*Battery life may vary depending on battery specifications, capacity, and usage conditions)

Accessories:

• Owner’s Manual
• Leaflet “USING THE UNIT SAFELY”
• AC Adaptor
• Power Cord
• Mini Cable (4-pole miniature phone type)

Options (Sold Separately):

• Footswitch: FS-5U, FS-6, FS-7
• Bluetooth® Audio MIDI Dual Adaptor: MODEL BT-DUAL
• Wireless MIDI Expression Pedal: EV-1-WL

Size and Weight:

• Width: 341 mm (13-7/16 inches)
• Depth: 162 mm (6-7/16 inches)
• Height: 215 mm (8-1/2 inches)
• Weight: 3.3 kg (7 lbs 5 oz) (excluding AC adaptor)
