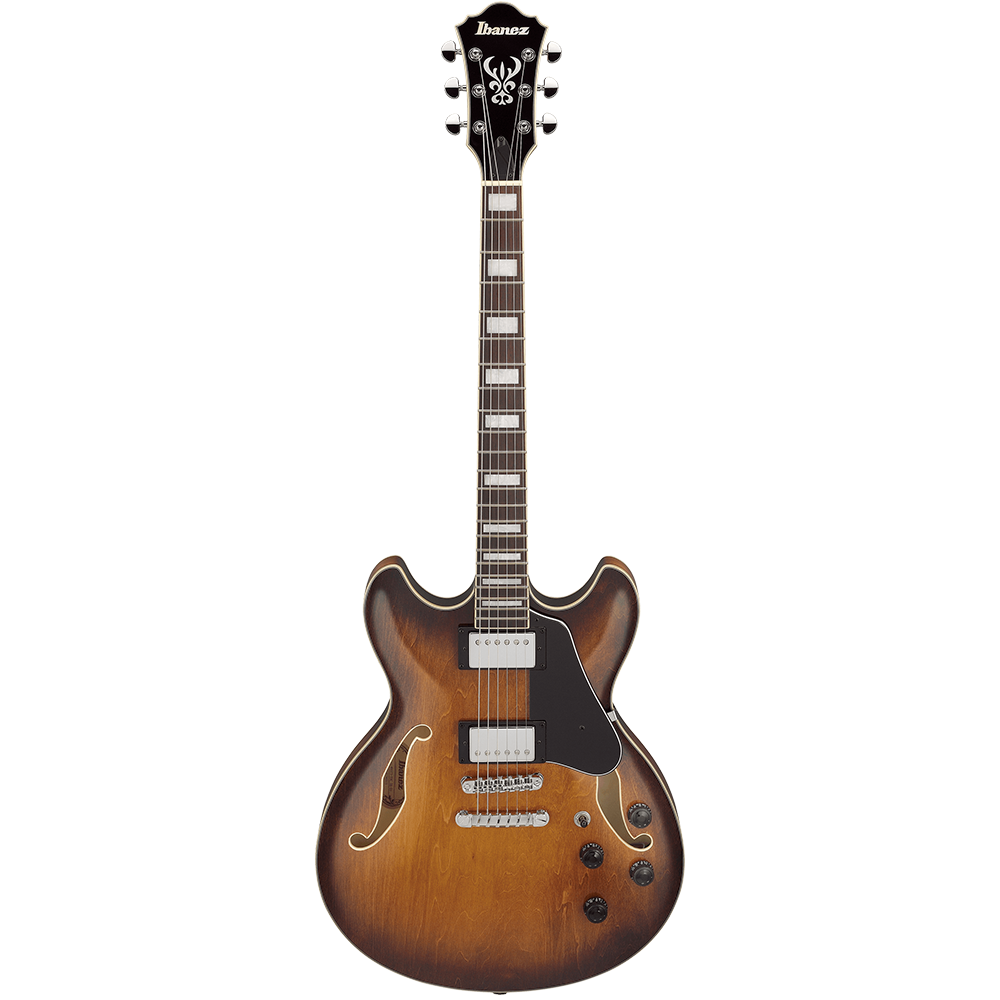

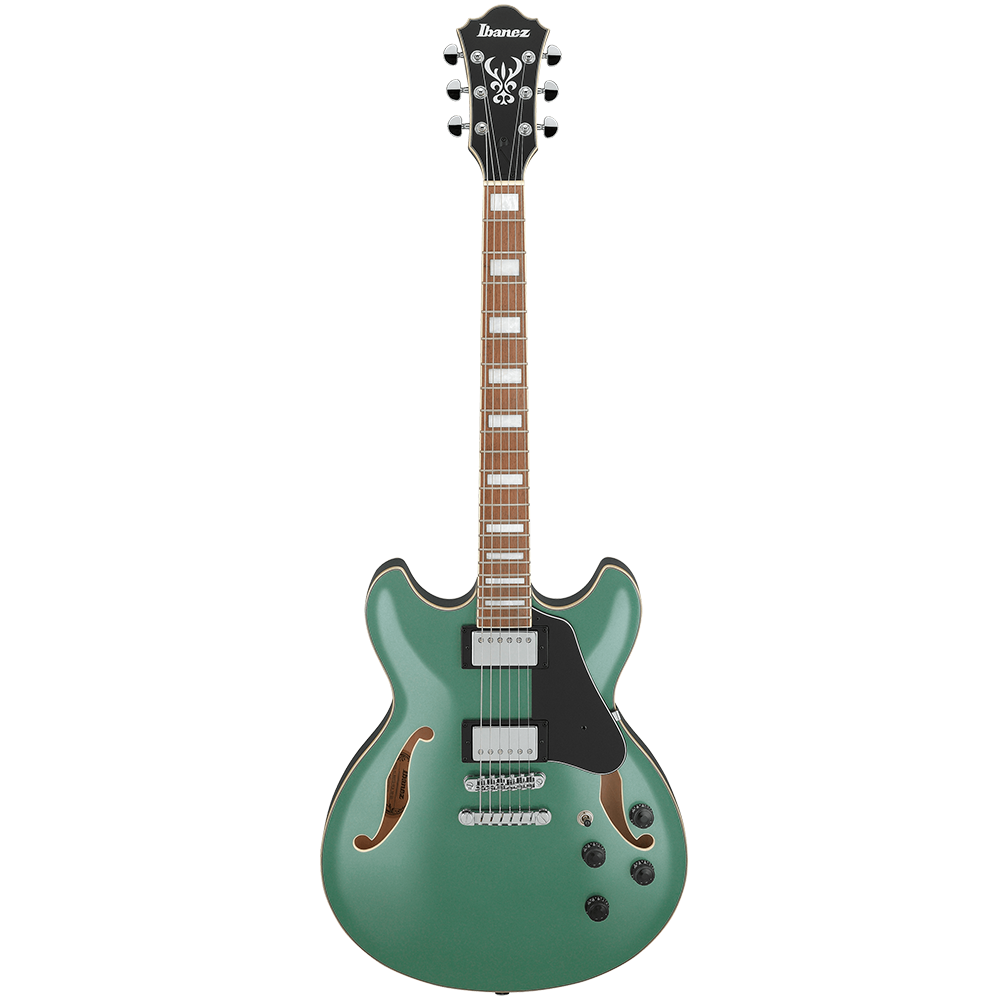

Ibanez AS73 Hollow Bodies Electric Guitar

Specifications

• Neck type: AS Artcore/ Nyatoh/ set-in neck
• Top/back/side Linden top Linden back/Linden sides
• Fretboard: Bound Walnut fretboard/Acrylic block inlay
• Fret: Medium frets
• Number of frets: 22
• Bridge: Gibraltar Performer bridge
• String space: 10.5mm
• Tailpiece Quik Change III tailpiece
• Neck pickup: Classic Elite (H) neck pickup (Passive/Ceramic)
• Bridge pickup: Classic Elite (H) bridge pickup (Passive/Ceramic)
• Factory tuning: 1E,2B,3G,4D,5A,6E
• String gauge: .010/.013/.017/.030/.042/.052
• Hardware color: Chrome

Neck Dimensions

• Scale: 628mm/24.7"
• A: Width 43mm at NUT
• B: Width 57mm at 22F
• C: Thickness 21mm at 1F
• D: Thickness 24mm at 9F
• Radius: 305mmR

Body Dimensions

• A: Length 19 1/4"
• B: Width 15 3/4"
• C: Max Depth 2 5/8"

Switching Systemcontrolsother Features

• Recommended Case: MS100C

Features

Nyatoh Neck

The Nyatoh neck provides a rich mid-low end. Gibraltar Performer bridge The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability. Classic Elite pickups The Classic Elite pickups offer rich, nuanced tone with fat low-end. Quik Change III Tailpiece The Quik Change III tailpiece enables faster and easier string changing.
